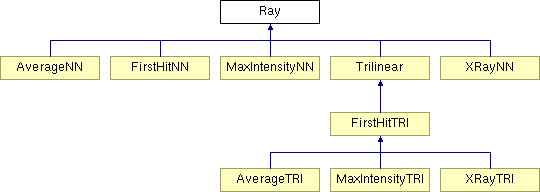

Ray class Reference

Constructor & Destructor Documentation

Ray::Ray

(

)

Definition at line 5 of file ray.cpp.

References m_alpha, m_ambient, m_backgroundcolor, m_currentcolor, m_currentpos, m_data, m_diffuse, m_direction, m_highlight, m_light, m_specular, m_startpoint, m_steplength, m_tf, m_viewingplane, mx, my, and mz.

00005          {
00006         // richtungsvektor
00007         m_direction = VECTOR(1,0,0);
00008         // aktuelle position am strahl
00009         m_currentpos = VECTOR(0,0,0);
00010         // Koeffizient für ambient lighting
00011         m_ambient = 0.2f;
00012         // Koeffizient für diffuses lighting
00013         m_diffuse = 0.2f;
00014         // Transferfubction
00015         m_tf = NULL;
00016         // datenvolumen
00017         m_data = NULL;
00018         // Hintergrundfarbe
00019         m_backgroundcolor = Color(0.0,0.0,0.0);
00020         // aktuelle Gesamtfarbe
00021         m_currentcolor = Color(0.0,0.0,0.0);
00022         // aktueller Alphawert
00023         m_alpha = 0.0;
00024         // Startpunkt
00025         m_startpoint = VECTOR(0,0,0);
00026         // Endpunkt
00027         m_steplength = 1.0;
00028         m_specular = 0.2f;
00029
00030         m_highlight = 8;
00031
00032         m_light = false;
00033         m_viewingplane = NULL;
00034         mx = 0.0f;
00035         my = 0.0f;
00036         mz = 0.0f;
00037 }

Ray::~Ray

(

)

Definition at line 39 of file ray.cpp.

00039 {}

Member Function Documentation

00110               {
00111
00112         if(m_data == NULL) return false;
00113         if(m_tf == NULL) return false;
00114
00115         bool first = true;
00116         int step_count = 0;
00117         VECTOR distancetomidpoint = VECTOR(mx/2.0f,my/2.0f,mz/2.0f)-m_currentpos;
00118         int steps = (int)((distancetomidpoint.length() + m_radius)/m_steplength);
00119         do {
00120                 if(m_alpha > 0.99) break;
00121                 if((m_currentpos.x >= 0.0)&&(m_currentpos.y >= 0.0)&&(m_currentpos.z >= 0.0)&&(m_currentpos.x < mx)&&(m_currentpos.y < my)&&(m_currentpos.z < mz)) {
00122                         if(first) {
00123                                 m_startpoint = VECTOR(m_currentpos.x,m_currentpos.y,m_currentpos.z);
00124                                 first = false;
00125                         }
00126                         int d = m_data->GetDensity((int)ROUND(m_currentpos.x),(int)ROUND(m_currentpos.y),(int)ROUND(m_currentpos.z));
00127
00128                         Color help_color = m_tf->GetDensityColor(d);
00129                         float help_alpha = m_tf->GetOpacity(d);
00130                         // lightning:
00131                         help_color = Lighting(help_color);
00132                         // calculate new currentcolor:
00133                         m_currentcolor += help_color*(1-m_alpha)*help_alpha;
00134                         // calculate new alphavalue
00135                         m_alpha += (1-m_alpha)*help_alpha;
00136                 }
00137                         // calculate new position
00138                 m_currentpos += m_steplength*m_direction;
00139
00140                 step_count++;
00141         }while(step_count <= steps);
00142         if(m_alpha < 1.0 ) {
00143                 m_currentcolor += m_backgroundcolor*(1.0f-m_alpha);
00144         }
00145         return true;
00146 }

float Ray::GetAlpha ( ) [inline]

Definition at line 57 of file ray.h.

00057 { return m_alpha;};

00088 { 00089 m_backgroundcolor = background; 00090 m_currentcolor = current; 00091 m_data = data; 00092 m_tf = tf; 00093 m_steplength = steplength; 00094 m_viewingplane = viewingplane; 00095 mx = (float)m_data->GetXDim(); 00096 my = (float)m_data->GetYDim(); 00097 mz = (float)m_data->GetZDim(); 00098 m_radius = sqrt(pow(mx/2.0f,2)+pow(my/2.0f,2)+pow(mz/2.0f,2)); 00099 return true; 00100 }

00063 { 00064 gradient_t grad = m_data->CalcGrad((int)ROUND(m_currentpos.x),(int)ROUND(m_currentpos.y),(int)ROUND(m_currentpos.z)); 00065 VECTOR normal = VECTOR(grad.x, grad.y, grad.z); 00066 normal.normalize(); // normalize normal 00067 VECTOR len = m_currentpos - m_startpoint; 00068 Color ret; 00069 if(m_light) { 00070 VECTOR v = -m_direction; 00071 v.normalize(); 00072 VECTOR l = m_lightpos-m_currentpos; 00073 l.normalize(); 00074 VECTOR h = (v+l); 00075 h.normalize(); 00076 ret = color*m_ambient + color*((m_diffuse*(normal.dot(m_direction))) + (m_specular*pow(normal.dot(h),m_highlight)))+ color/(4.0f+1000000.0f*len.length()); 00077 } 00078 else ret = color*m_ambient + color*(m_diffuse*(normal.dot(m_direction))) + color/(4.0f+1000000.0f*len.length()); 00079 return ret; 00080 }

void Ray::SetLight ( bool light ) [inline]

Definition at line 58 of file ray.h.

Referenced by Perspective::Raycast(), and Raycaster::Raycast().

00058 { m_light = light;};

bool Ray::SetPosDir	(	VECTOR	currentpos,
		VECTOR	direction
	)

Definition at line 103 of file ray.cpp.

References m_currentpos, and m_direction.

Referenced by Perspective::Raycast(), and Raycaster::Raycast().

00103                                                   {
00104         m_currentpos = currentpos;
00105         m_direction = direction;
00106         return true;
00107 }

bool Ray::SetViewingCondition	(	VECTOR	lightpos,
		float	ambient,
		float	diffuse,
		float	specular,
		int	highlight
	)

Definition at line 42 of file ray.cpp.

References m_ambient, m_diffuse, m_highlight, and m_specular.

Referenced by Perspective::Raycast(), and Raycaster::Raycast().

00042                                                                                                      {
00043
00044         if (ambient > 1.0) ambient = 1.0;
00045         if (ambient < 0.0) ambient = 0.0;
00046         if (diffuse > 1.0) diffuse = 1.0;
00047         if (diffuse < 0.0) diffuse = 0.0;
00048         if (specular > 1.0) specular = 1.0;
00049         if (specular < 0.0) specular = 0.0;
00050         if(highlight < 0) highlight = 0;
00051
00052         m_highlight = highlight;
00053         m_specular = specular;
00054         m_ambient = ambient;
00055         m_diffuse = diffuse;
00056         return true;
00057 }

Ray Class Reference

Public Methods

Protected Methods

Protected Attributes

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation


Public Methods
	Ray ()
	~Ray ()
bool	SetViewingCondition (VECTOR lightpos, float ambient, float diffuse, float specular, int highlight)
bool	Initialize (Color background, Color current, float steplength, Plane viewingplane, Data data, Transfunc *tf)
bool	SetPosDir (VECTOR currentpos, VECTOR direction)
Color	GetCurrentColor ()
float	GetAlpha ()
void	SetLight (bool light)
virtual bool	CastNext ()
bool	Reset ()
Protected Methods
virtual Color	Lighting (Color color)
Protected Attributes
bool	m_light
VECTOR	m_lightpos
VECTOR	m_currentpos
float	m_ambient
float	m_diffuse
float	m_specular
int	m_highlight
Transfunc *	m_tf
Data *	m_data
Color	m_backgroundcolor
Color	m_currentcolor
float	m_alpha
VECTOR	m_startpoint
VECTOR	m_direction
float	m_steplength
Plane *	m_viewingplane
float	mx
float	my
float	mz
float	m_radius
