Information
- Replaced by: Kohlmann-2007-EBV
- Publication Type: Technical Report
- Workgroup(s)/Project(s):
- Date: October 2006
- Number: TR-186-2-06-04
- Keywords: MPR, Bricked Volume Layout, Medical Visualization, Medical Workstation
Abstract

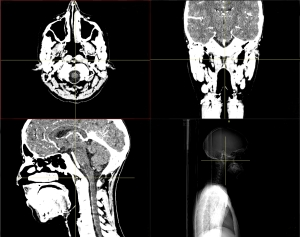

Volumes acquired for medical examination purposes are constantly increasing in size. For this reason, the computer’s memory is the limiting factor for visualizing the data. Bricking is a well-known concept used for rendering large data sets. The volume data is subdivided into smaller blocks to achieve better memory utilization. Until now, the vast majority of medical workstations use a linear volume layout. We implemented a bricked volume layout for such a workstation based on Java as required by our collaborative company partner to evaluate different common access patterns to the volume data. For rendering, we were mainly interested to see how the performance will differ from the traditional linear volume layout if we generate images of arbitrarily oriented slices via Multi-Planar Reformatting (MPR). Furthermore, we tested access patterns which are crucial for segmentation issues like a random access to data values and a simulated region growing. Our goal was to find out if it makes sense to change the volume layout of the medical workstation to benefit of bricking. We were also interested to identify the tasks where problems might occur if bricking is applied. Overall, our results show that it is feasible to use a bricked volume layout.Additional Files and Images
Weblinks
No further information available.BibTeX
@techreport{TR-186-2-06-04, title = "Evaluation of a Bricked Volume Layout for a Medical Workstation based on Java", author = "Peter Kohlmann and Stefan Bruckner and Armin Kanitsar and Eduard Gr\"{o}ller", year = "2006", abstract = "Volumes acquired for medical examination purposes are constantly increasing in size. For this reason, the computer’s memory is the limiting factor for visualizing the data. Bricking is a well-known concept used for rendering large data sets. The volume data is subdivided into smaller blocks to achieve better memory utilization. Until now, the vast majority of medical workstations use a linear volume layout. We implemented a bricked volume layout for such a workstation based on Java as required by our collaborative company partner to evaluate different common access patterns to the volume data. For rendering, we were mainly interested to see how the performance will differ from the traditional linear volume layout if we generate images of arbitrarily oriented slices via Multi-Planar Reformatting (MPR). Furthermore, we tested access patterns which are crucial for segmentation issues like a random access to data values and a simulated region growing. Our goal was to find out if it makes sense to change the volume layout of the medical workstation to benefit of bricking. We were also interested to identify the tasks where problems might occur if bricking is applied. Overall, our results show that it is feasible to use a bricked volume layout.", month = oct, number = "TR-186-2-06-04", address = "Favoritenstrasse 9-11/E193-02, A-1040 Vienna, Austria", institution = "Institute of Computer Graphics and Algorithms, Vienna University of Technology ", note = "human contact: technical-report@cg.tuwien.ac.at", keywords = "MPR, Bricked Volume Layout, Medical Visualization, Medical Workstation", URL = "https://www.cg.tuwien.ac.at/research/publications/2006/TR-186-2-06-04/", }
