Improving the Performance of Edge-Path Bundling With WebGPU | TU Wien

Information

Publication Type: Bachelor Thesis
Workgroup(s)/Project(s):
- Visualization Group
Date: September 2025
Date (Start): March 2025
Date (End): September 2025
Matrikelnummer: 11776184
First Supervisor:
- Eduard Gröller
- Manuela Waldner

Abstract

Visualizing large graphs is often challenging due to visual clutter, which obscures important patterns. While Spanner-based Edge-Path Bundling (S-EPB) is an effective technique for mitigating this issue, its CPU-based implementation is too slow for interactive use, particularly in web environments. This thesis presents a Parallel Edge-Path Bundling (P-EPB) algorithm that addresses this performance limitation by utilizing the massively parallel processing capabilities of modern Graphics Processing Unit (GPU)s through the WebGPU API.

The proposed algorithm reengineers the S-EPB technique for parallel execution, with a focus on finding and then optimizing the most computationally demanding tasks: spanner construction and shortest-path calculations. A parallelized Floyd–Warshall algorithm, together with different spanner construction methods (greedy and theta-graph), is employed in implementing the P-EPB algorithm as an interactive web application.

A detailed evaluation compares the WebGPU-based P-EPB algorithm to the CPU-based S-EPB implementation. Results show that the P-EPB approach, particularly when using a theta-spanner, delivers substantial speedups on dense graphs. This work highlights the potential of WebGPU to enable high-performance, interactive graph visualization and analysis in web-based environments.

Additional Files and Images

Additional images and videos

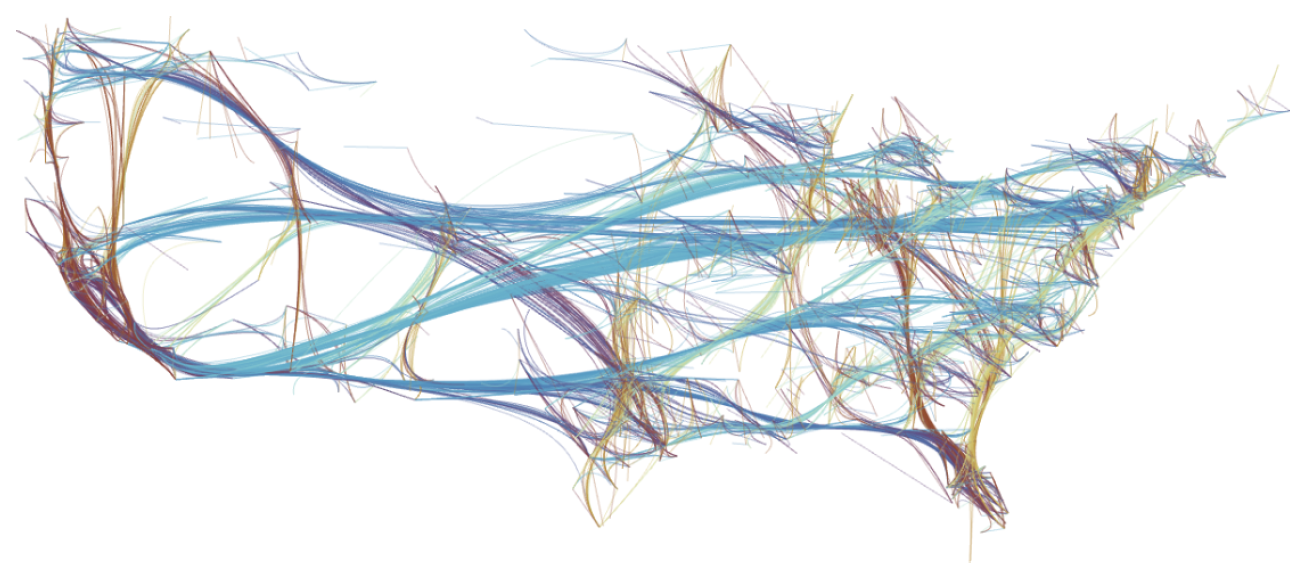

teaser
