A Shape Grammar for Developing Glyph-based Visualizations

Pushpak Karnik, Stefan Jeschke, David Cline, Anshuman Razdan, E. Wentz, Peter Wonka
A Shape Grammar for Developing Glyph-based Visualizations
Computer Graphics Forum, 28(8):2176-2188, 2009. [paper]

Information

Abstract

In this paper we address the question of how to quickly model glyph-based GIS visualizations. Our solution is based on using shape grammars to set up the different aspects of a visualization, including the geometric content of the visualization, methods for resolving layout conflicts and interaction methods. Our approach significantly increases modeling efficiency over similarly flexible systems currently in use.

Additional Files and Images

Additional images and videos

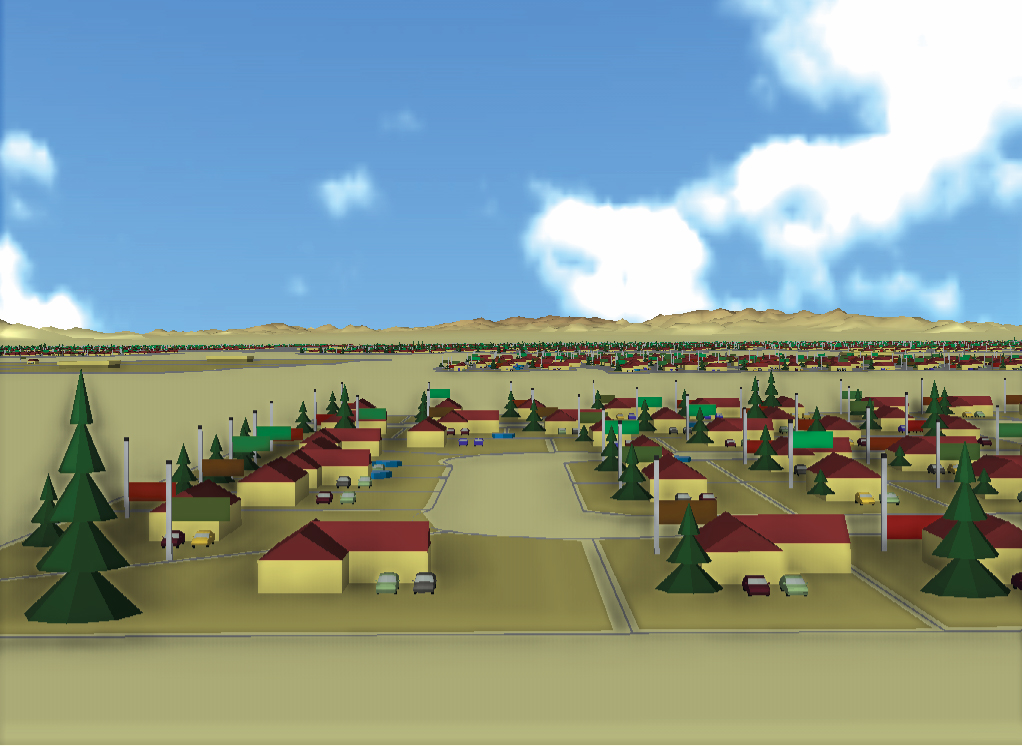

image: Example for a city modelled with our shape grammar. image: Example for a city modelled with our shape grammar.

Additional files

Weblinks

No further information available.

BibTeX

@article{karnik-09-shapegrammar,
  title =      "A Shape Grammar for Developing Glyph-based Visualizations",
  author =     "Pushpak Karnik and Stefan Jeschke and David Cline and
               Anshuman Razdan and E. Wentz and Peter Wonka",
  year =       "2009",
  abstract =   "In this paper we address the question of how to quickly
               model glyph-based GIS visualizations. Our solution is based
               on using shape grammars to set up the different aspects of a
               visualization, including the geometric content of the
               visualization, methods for resolving layout conflicts and
               interaction methods. Our approach significantly increases
               modeling efficiency over similarly flexible systems
               currently in use.",
  issn =       "0167-7055",
  journal =    "Computer Graphics Forum",
  number =     "8",
  volume =     "28",
  pages =      "2176--2188",
  URL =        "https://www.cg.tuwien.ac.at/research/publications/2009/karnik-09-shapegrammar/",
}
