Tangible Heritage: Production of Astrolabes on a Laser Engraver

Georg Zotti
Tangible Heritage: Production of Astrolabes on a Laser Engraver
In EG2007 Cultural Heritage Papers, pages 41-48 (colorplate:p60). September 2007.
[paper]

Information

Abstract

The astrolabe, an analog computing device, used to be the iconic instrument of astronomers during the Middle Ages. It allowed a multitude of operations of practical astronomy which were otherwise cumbersome to perform in an epoch when mathematics had apparently almost been forgotten. Usually made from wood or sheet metal, a few hundred instruments, mostly from brass, survived until today and are valuable museum showpieces. This paper explains a procedural modelling approach for the construction of the classical kinds of astrolabes, which allows a wide variety of applications from plain explanatory illustrations to 3D models, and even the production of working physical astrolabes usable for public or classroom demonstrations.

Additional Files and Images

Additional images and videos

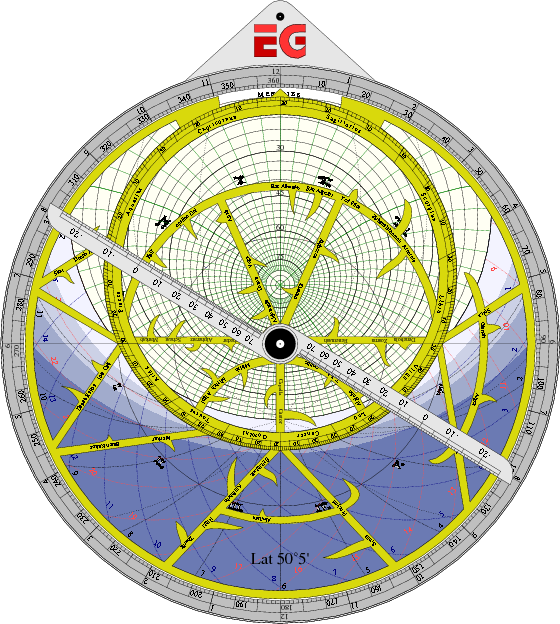

: Astrolabe Front : Astrolabe Front

Additional files

Weblinks

No further information available.

BibTeX

@inproceedings{zotti-2007-eg,
  title =      "Tangible Heritage: Production of Astrolabes on a Laser
               Engraver",
  author =     "Georg Zotti",
  year =       "2007",
  abstract =   "The astrolabe, an analog computing device, used to be the
               iconic   instrument of astronomers during the Middle Ages.
               It allowed a   multitude of operations of practical
               astronomy which were otherwise   cumbersome to perform in an
               epoch when mathematics had apparently   almost been
               forgotten. Usually made from wood or sheet metal, a   few
               hundred instruments, mostly from brass, survived until today
               and   are valuable    museum showpieces. This paper explains
               a procedural modelling   approach for the construction of
               the classical kinds of astrolabes,   which allows a wide
               variety of applications from plain explanatory
               illustrations to 3D models, and even the production of
               working   physical astrolabes usable for public or classroom
               demonstrations.",
  month =      sep,
  booktitle =  "EG2007 Cultural Heritage Papers",
  editor =     "David B. Arnold and Andrej Ferko",
  issn =       "1017-4656",
  location =   "Prague",
  organization = "Eurographics",
  publisher =  "Eurographics",
  pages =      "41--48 (colorplate:p60)",
  keywords =   "Cultural Heritage, Astronomy, Astrolabe, Procedural
               Modelling",
  URL =        "https://www.cg.tuwien.ac.at/research/publications/2007/zotti-2007-eg/",
}
