Style Transfer Functions for Illustrative Volume Rendering

Information

  • Publication Type: Journal Paper with Conference Talk
  • Workgroup(s)/Project(s):
  • Date: September 2007
  • Date (from): 3. September 2007
  • Date (to): 7. September 2007
  • Event: Eurographics 2007
  • Journal: Computer Graphics Forum
  • Lecturer: Stefan Bruckner
  • Location: Prague, Czech Republic
  • Note: Eurographics 2007 3rd Best Paper Award
  • Number: 3
  • Pages (from): 715
  • Pages (to): 724
  • Volume: 26
  • Keywords: illustrative visualization, transfer functions, volume rendering

Abstract

Illustrative volume visualization frequently employs non-photorealistic rendering techniques to enhance important features or to suppress unwanted details. However, it is difficult to integrate multiple non-photorealistic rendering approaches into a single framework due to great differences in the individual methods and their parameters. In this paper, we present the concept of style transfer functions. Our approach enables flexible data-driven illumination which goes beyond using the transfer function to just assign colors and opacities. An image-based lighting model uses sphere maps to represent non-photorealistic rendering styles. Style transfer functions allow us to combine a multitude of different shading styles in a single rendering. We extend this concept with a technique for curvature-controlled style contours and an illustrative transparency model. Our implementation of the presented methods allows interactive generation of high-quality volumetric illustrations.

Additional Files and Images

Additional images and videos

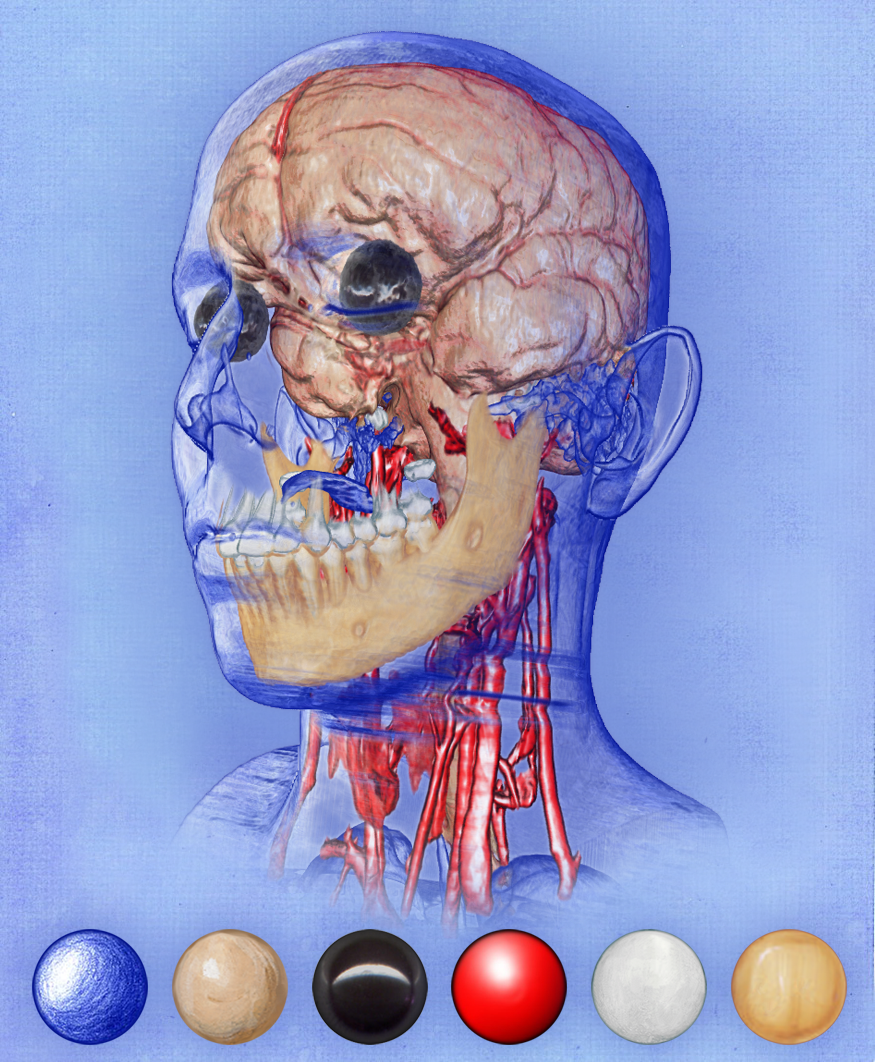

Head: Illustrative volume rendering of a human head using style transfer functions Head: Illustrative volume rendering of a human head using style transfer functions
