streamlines.h File Reference

#include "flowvis_data.h"
#include <vector>
#include <list>
#include <cassert>

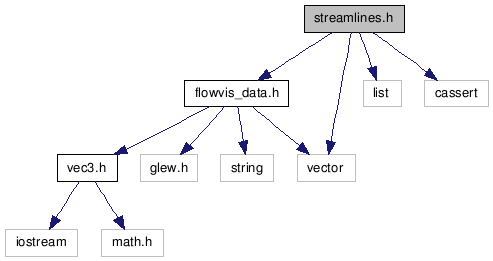

Include dependency graph for streamlines.h:

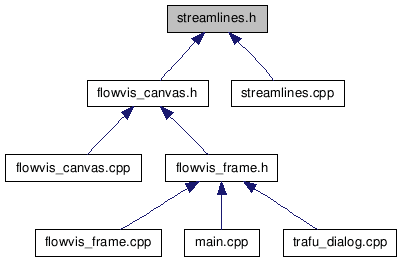

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Namespaces
namespace	detail
Classes
struct	vec2
	Helper structure for holding and manipulating 2 dimensional vectors or coordinates. More...
struct	SamplePoint
struct	SL_Rectangle
	Helper structure used to specify the dimensions of the velocity field. More...
class	detail::Array2d< T >
	Helper class providing easy 2 dimensional vector of type <T> (non growing). More...
class	VelocityFunctor
	Functor for accessing the Velocity Data. More...
class	StreamlineGenerator
	Class used to generate evenly spaced streamlines. More...
Typedefs
typedef std::vector< SamplePoint >	Streamline
	Stremlines are collections of SamplePoints.
Enumerations
enum	SLIterAlg { ITER_RK, ITER_EULER }
	Enumeration of available integration methods. More...
Functions
vec2	rotate90 (const vec2 &v)
	Rotate the Y Component for 90°.
const float	dot (const vec2 &lhs, const vec2 &rhs)
	Calculate dot product (x1 * x2 + y1 * y2) of a 2 dimensional vector.
const vec2	operator* (const vec2 &v, float f)
	Multiply a vector with a scalar.
const vec2	operator+ (const vec2 &lhs, const vec2 &rhs)
	Add one vector to another (or move in 2 dimesions by adding a vector to a point).
const vec2	operator- (const vec2 &lhs, const vec2 &rhs)
	Subtract one vector from another (or move in 2 dimensions by subtracting a vector from a point).
const float	length (const vec2 &vec)
	Calculate the length of a 2 dimensional vector.

---

Typedef Documentation

typedef std::vector<SamplePoint> Streamline

Stremlines are collections of SamplePoints.

Definition at line 162 of file streamlines.h.

---

Enumeration Type Documentation

enum SLIterAlg

Enumeration of available integration methods.

Enumerator:

ITER_RK	Runel-Kutter Integration (more accurate than Euler).
ITER_EULER	Euler Integration (a little bit faster tha Runel-Kutter).

Definition at line 193 of file streamlines.h.

---

Function Documentation

const float dot	(	const vec2 &	lhs,
		const vec2 &	rhs
	)			[inline]

Calculate dot product (x1 * x2 + y1 * y2) of a 2 dimensional vector.

Definition at line 26 of file streamlines.h.

References vec2::x, and vec2::y.

Referenced by StreamlineGenerator::GetMinDistance(), and SamplePoint::SamplePoint().

const float length

(

const vec2 &

vec

)

[inline]

Calculate the length of a 2 dimensional vector.

Definition at line 42 of file streamlines.h.

References vec2::x, and vec2::y.

Referenced by FlowVisCanvas::Render_Arrows(), and SamplePoint::SamplePoint().

const vec2 operator*	(	const vec2 &	v,
		float	f
	)			[inline]

Multiply a vector with a scalar.

Definition at line 30 of file streamlines.h.

References vec2::x, and vec2::y.

const vec2 operator+	(	const vec2 &	lhs,
		const vec2 &	rhs
	)			[inline]

Add one vector to another (or move in 2 dimesions by adding a vector to a point).

Definition at line 34 of file streamlines.h.

References vec2::x, and vec2::y.

const vec2 operator-	(	const vec2 &	lhs,
		const vec2 &	rhs
	)			[inline]

Subtract one vector from another (or move in 2 dimensions by subtracting a vector from a point).

Definition at line 38 of file streamlines.h.

References vec2::x, and vec2::y.

vec2 rotate90

(

const vec2 &

v

)

[inline]

Rotate the Y Component for 90°.

Definition at line 22 of file streamlines.h.

References vec2::x, and vec2::y.

Referenced by VelocityFunctor::operator()(), and StreamlineGenerator::StreamlineGenerator().
