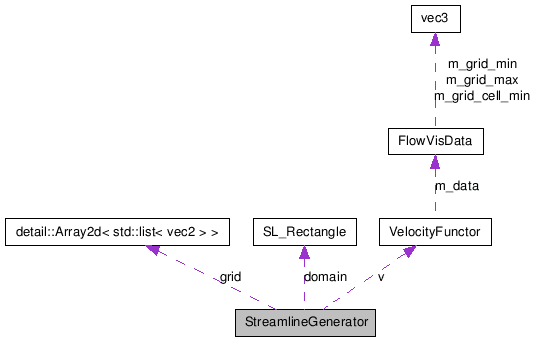

StreamlineGenerator Class Reference
Class used to generate evenly spaced streamlines. More...
#include <streamlines.h>
Public Types | |
| typedef VelocityFunctor | VelocityFunc |
Public Member Functions | |
| StreamlineGenerator (const SL_Rectangle &domain, float dsep, float dtest, float stepsize, int maxiter, VelocityFunc v, SLIterAlg inter_type) | |
| Constructor. | |
| const std::vector< Streamline > & | GetStreamlines () const |
| Returns the computed streamlines. | |
Private Member Functions | |
| bool | IsOutsideBounds (const vec2 &v) const |
| Test if point outside the field specified by domain. | |
| void | ComputeCellPosition (const vec2 &v, int &cx, int &cy) const |
| Computes the grid cell position for the given point. | |
| void | BeginTraceLine () |
| Called when a new traceline is being traced. | |
| void | EndTraceLine () |
| Called when tracing of a streamline has ended. | |
| float | GetMinDistance (const vec2 &v) const |
| Returns the minimum distance to the other streamlines or HUGE if they are far away. | |
| void | PutIntoGrid (const vec2 &v) |
| Put the point into the grid used for fast proximity tests. | |
| void | DelayedPutIntoGrid (const vec2 &v) |
| void | TraceLine (const vec2 &startpos, Streamline &sline) |
| Trace a single streamline and stay away from the existing ones. | |
| void | TraceAndStore (const vec2 &v, Streamline &sl) |
| Helper function. | |
| float | ComputeThickness (float mindist) |
| Computes the thinkness of the streamline (for tapering). | |
| bool | InterpolateTo (vec2 &position, bool forward) |
| Helper function that moves a current point acording to it's associated velocity (or against that vector). | |
Private Attributes | |
| SL_Rectangle | domain |
| Defines which values the velocity fields coordinates should be mapped to. | |
| SLIterAlg | inter_type |
| Which type of integration should be used for following the 'flow'. | |
| VelocityFunc | v |
| Functor that access the velocity field's value at a given location. | |
| std::vector< Streamline > | streamlines |
| Collection of all calculated streamlines. | |
| size_t | grid_add_delay |
| Specifies at which length of the points queue the points are put into real streamlines. | |
| detail::Array2d< std::list < vec2 > > | grid |
| Grid used for speadup. | |
| std::list< vec2 > | point_queue |
| Queue of generated seed points. | |
Parameters for the algorythm | |
| float | dsep |
| float | dtest |
| float | stepsize |
| float | stepsize_half |
| int | maxiter |
Detailed Description
Class used to generate evenly spaced streamlines.Definition at line 202 of file streamlines.h.
Member Typedef Documentation
Function pointer used to get the velocity field. The returned vector must be normalized!
Definition at line 207 of file streamlines.h.
Constructor & Destructor Documentation
| StreamlineGenerator::StreamlineGenerator | ( | const SL_Rectangle & | domain, | |
| float | dsep, | |||
| float | dtest, | |||
| float | stepsize, | |||
| int | maxiter, | |||
| VelocityFunc | v, | |||
| SLIterAlg | inter_type | |||
| ) |
Constructor.
Definition at line 173 of file streamlines.cpp.
References SL_Rectangle::bottom, SL_Rectangle::left, SL_Rectangle::right, rotate90(), streamlines, SL_Rectangle::top, TraceAndStore(), x, and y.
Member Function Documentation
| bool StreamlineGenerator::IsOutsideBounds | ( | const vec2 & | v | ) | const [inline, private] |
Test if point outside the field specified by domain.
c_block contains areas with 0 velocity (the block itself) Consider such areas as ouside of bounds (since the alg. can't go on from there anyway. If the position is moved into such a "dead space" the position can become QNAN or IND ...
Definition at line 245 of file streamlines.h.
References SL_Rectangle::bottom, domain, SL_Rectangle::left, SL_Rectangle::right, SL_Rectangle::top, vec2::x, and vec2::y.
Referenced by InterpolateTo(), and TraceLine().
| void StreamlineGenerator::ComputeCellPosition | ( | const vec2 & | v, | |
| int & | cx, | |||
| int & | cy | |||
| ) | const [inline, private] |
Computes the grid cell position for the given point.
Definition at line 257 of file streamlines.h.
References SL_Rectangle::bottom, domain, dsep, SL_Rectangle::left, vec2::x, and vec2::y.
Referenced by GetMinDistance(), and PutIntoGrid().
| void StreamlineGenerator::BeginTraceLine | ( | ) | [private] |
Called when a new traceline is being traced.
Definition at line 64 of file streamlines.cpp.
Referenced by TraceLine().
| void StreamlineGenerator::EndTraceLine | ( | ) | [private] |
Called when tracing of a streamline has ended.
Flush the point queue.
Definition at line 66 of file streamlines.cpp.
References point_queue, and PutIntoGrid().
Referenced by TraceLine().
| float StreamlineGenerator::GetMinDistance | ( | const vec2 & | v | ) | const [private] |
Returns the minimum distance to the other streamlines or HUGE if they are far away.
Definition at line 5 of file streamlines.cpp.
References ComputeCellPosition(), dot(), detail::Array2d< T >::GetSizeX(), detail::Array2d< T >::GetSizeY(), grid, x, and y.
Referenced by TraceLine().
| void StreamlineGenerator::PutIntoGrid | ( | const vec2 & | v | ) | [private] |
Put the point into the grid used for fast proximity tests.
Definition at line 46 of file streamlines.cpp.
References ComputeCellPosition(), and grid.
Referenced by DelayedPutIntoGrid(), and EndTraceLine().
| void StreamlineGenerator::DelayedPutIntoGrid | ( | const vec2 & | v | ) | [private] |
First put the point in a queue and only add it sometime later when the streamline has grown to prevent false self intersections.
Definition at line 53 of file streamlines.cpp.
References grid_add_delay, point_queue, and PutIntoGrid().
Referenced by TraceLine().
| void StreamlineGenerator::TraceLine | ( | const vec2 & | startpos, | |
| Streamline & | sline | |||
| ) | [private] |
Trace a single streamline and stay away from the existing ones.
Definition at line 96 of file streamlines.cpp.
References BeginTraceLine(), ComputeThickness(), DelayedPutIntoGrid(), dtest, EndTraceLine(), GetMinDistance(), InterpolateTo(), IsOutsideBounds(), maxiter, and v.
Referenced by TraceAndStore().
| void StreamlineGenerator::TraceAndStore | ( | const vec2 & | v, | |
| Streamline & | sl | |||
| ) | [private] |
Helper function.
Definition at line 164 of file streamlines.cpp.
References streamlines, and TraceLine().
Referenced by StreamlineGenerator().
| float StreamlineGenerator::ComputeThickness | ( | float | mindist | ) | [inline, private] |
Computes the thinkness of the streamline (for tapering).
Definition at line 286 of file streamlines.h.
Referenced by TraceLine().
| bool StreamlineGenerator::InterpolateTo | ( | vec2 & | position, | |
| bool | forward | |||
| ) | [private] |
Helper function that moves a current point acording to it's associated velocity (or against that vector).
Definition at line 76 of file streamlines.cpp.
References inter_type, IsOutsideBounds(), ITER_EULER, ITER_RK, stepsize, stepsize_half, and v.
Referenced by TraceLine().
| const std::vector<Streamline>& StreamlineGenerator::GetStreamlines | ( | ) | const [inline] |
Returns the computed streamlines.
Definition at line 306 of file streamlines.h.
References streamlines.
Referenced by FlowVisCanvas::Prepare_Streamlines().
Member Data Documentation
SL_Rectangle StreamlineGenerator::domain [private] |
Defines which values the velocity fields coordinates should be mapped to.
Definition at line 211 of file streamlines.h.
Referenced by ComputeCellPosition(), and IsOutsideBounds().
float StreamlineGenerator::dsep [private] |
Definition at line 215 of file streamlines.h.
Referenced by ComputeCellPosition(), and ComputeThickness().
float StreamlineGenerator::dtest [private] |
float StreamlineGenerator::stepsize [private] |
float StreamlineGenerator::stepsize_half [private] |
int StreamlineGenerator::maxiter [private] |
SLIterAlg StreamlineGenerator::inter_type [private] |
Which type of integration should be used for following the 'flow'.
Definition at line 225 of file streamlines.h.
Referenced by InterpolateTo().
VelocityFunc StreamlineGenerator::v [private] |
Functor that access the velocity field's value at a given location.
Definition at line 228 of file streamlines.h.
Referenced by InterpolateTo(), and TraceLine().
std::vector<Streamline> StreamlineGenerator::streamlines [private] |
Collection of all calculated streamlines.
Definition at line 231 of file streamlines.h.
Referenced by GetStreamlines(), StreamlineGenerator(), and TraceAndStore().
size_t StreamlineGenerator::grid_add_delay [private] |
Specifies at which length of the points queue the points are put into real streamlines.
Definition at line 234 of file streamlines.h.
Referenced by DelayedPutIntoGrid().
detail::Array2d<std::list<vec2> > StreamlineGenerator::grid [private] |
Grid used for speadup.
Definition at line 237 of file streamlines.h.
Referenced by GetMinDistance(), and PutIntoGrid().
std::list<vec2> StreamlineGenerator::point_queue [private] |
Queue of generated seed points.
Definition at line 240 of file streamlines.h.
Referenced by DelayedPutIntoGrid(), and EndTraceLine().
