View Class Reference

View class. More...

#include <View.h>

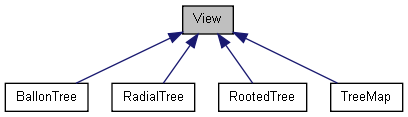

Inheritance diagram for View:

Collaboration diagram for View:

List of all members.

Public Types
enum	ViewMethods {   VM_ROOTEDTREE, VM_BALLONTREE, VM_TREEMAP_SLICE_AND_DICE, VM_TREEMAP_STRIP,   VM_RADIALTREE, VM_QUANTITY }
Public Member Functions
	View ()
	~View (void)
virtual void	Calculate ()=0
void	SetGUIVertexForView (unsigned int id, GUIVertex vertex)
GUIVertex	GetGUIVertexForView (unsigned int id)
Static Public Member Functions
static void	SetGraph (Graph *grah)
Public Attributes
std::map< unsigned int, GUIVertex >	m_guivertex
unsigned int	vbohierarchylines_vert
unsigned int	vbohierarchylines_color
unsigned int	vboindex_picking_ind
Static Public Attributes
static Graph *	m_pkGraph

---

Detailed Description

View class.

Diese abstrakte Klasse dient für die Definition der Layoutdaten für die verschiedenen Trees.

Author:

Michael Beham

Date:

5.12.2010

---

Member Enumeration Documentation

enum View::ViewMethods

Dieses Enum spezifiziert den Typ des Objektes.

Enumerator:

VM_ROOTEDTREE
VM_BALLONTREE
VM_TREEMAP_SLICE_AND_DICE
VM_TREEMAP_STRIP
VM_RADIALTREE
VM_QUANTITY

---

Constructor & Destructor Documentation

View::View

(

)

Konstruktor. Initialisiert die Werte auf Defaultwerte

View::~View

(

void

)

Dekonstruktor

---

Member Function Documentation

virtual void View::Calculate

(

)

[pure virtual]

Diese Methode wird vom Child implementiert, wo das Layout berechnet wird.

Implemented in BallonTree, RadialTree, RootedTree, and TreeMap.

GUIVertex View::GetGUIVertexForView

(

unsigned int

id

)

Diese Methode liefert das GUIVertex zu einer übergebenen id.

Parameters:

[unsigned

int] id Id des Vertex

Returns:

[GUIVertex] GUIVertex Objekt

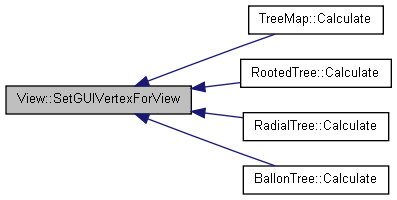

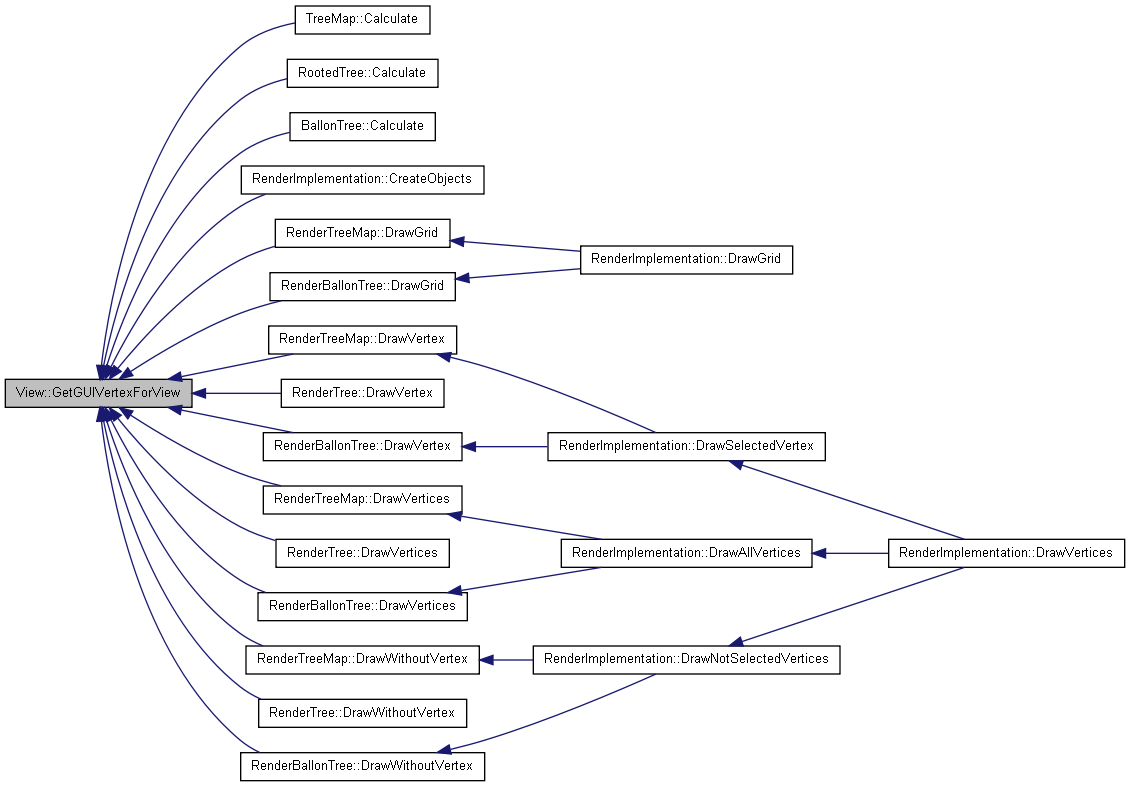

Here is the caller graph for this function:

void View::SetGraph

(

Graph *

grah

)

[static]

Diese Methode übergibt den Childs den Graphdateb

Parameters:

[Graph*]

graph Graph Objekt.

void View::SetGUIVertexForView	(	unsigned int	id,
		GUIVertex	vertex
	)

Diese Methode setzt für ein Vertex ein GUIVertex

Parameters:

[unsigned	int] id ID des korrespondierenden Vertex.
[GUIVertex]	GUIVertex Objekt.

Here is the caller graph for this function:

---

Member Data Documentation

std::map<unsigned int, GUIVertex> View::m_guivertex

Graph * View::m_pkGraph [static]

unsigned int View::vbohierarchylines_color

unsigned int View::vbohierarchylines_vert

unsigned int View::vboindex_picking_ind

---

The documentation for this class was generated from the following files:

• J:/Caro/C++_Coding/HierarchicalEdgeBundle/HierarchicalEdgeBundle/header/View.h
• J:/Caro/C++_Coding/HierarchicalEdgeBundle/HierarchicalEdgeBundle/src/View.cpp
