#include <SplineSet.h>

Collaboration diagram for SplineSet:

Public Member Functions
	SplineSet (int numberOfHierarchy)
	~SplineSet ()
void	addBSpline (QVector< QVector3D > *polygon, int size, int view, float id)
void	setNewBundlingValue (float bundlingBeta)
QVector< BSpline * > *	getSplineVector (int view)
void	sortBSpline ()

Detailed Description

This class organizes the B-Spline objects

Constructor & Destructor Documentation

SplineSet::SplineSet ( int numberOfHierarchy )

Constructs a new SplineSet object the parameter needed is the numberOfHierarchy for the unerlaying Basisfunktions

SplineSet::~SplineSet ( )

Destructor

adds a Bspline with the given controlpolygon to the view-corresponding QVector

Parameters:

polygon	a pointer to the object with the controlpoints of the controlpolygon
size	the number of control points
view	determines to which QVector the B-Spline is added
id	is the id of the adjaceny edge

Here is the caller graph for this function:

QVector< BSpline * > * SplineSet::getSplineVector ( int view )

return a pointer to the Vector with pointer to all the B-Splines corresponding to the view

Parameters:

view	indicates which QVector should be returned by these Method

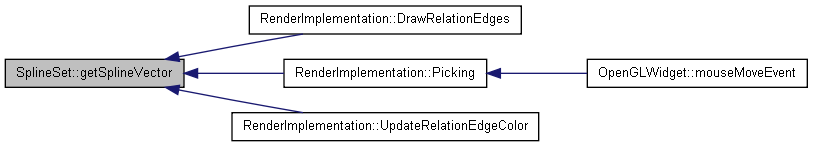

Here is the caller graph for this function:

void SplineSet::setNewBundlingValue ( float bundlingBeta )

calls the recalculate-method of the B-Spline objects in all QVectors

Parameters:

bundlingBeta is the bundling strength and is between 0.0f and 1.0f

Here is the caller graph for this function:

void SplineSet::sortBSpline ( )

sorts the B-Splines in a QVector ascending by length

Here is the call graph for this function:

Here is the caller graph for this function:

The documentation for this class was generated from the following files:

J:/Caro/C++_Coding/HierarchicalEdgeBundle/HierarchicalEdgeBundle/header/SplineSet.h
J:/Caro/C++_Coding/HierarchicalEdgeBundle/HierarchicalEdgeBundle/src/SplineSet.cpp
