Base class which contains common properties and functions shared between the TextMeshPro and TextMeshProUGUI component. More...

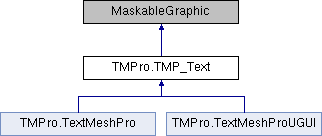

Inheritance diagram for TMPro.TMP_Text:

Public Member Functions
virtual void	ForceMeshUpdate ()
	Function to force the regeneration of the text object. More...

virtual void	ForceMeshUpdate (bool ignoreActiveState)
	Method used for resetting vertex layout when switching to and from Volumetric Text mode. More...

virtual void	UpdateGeometry (Mesh mesh, int index)
	Function to force the regeneration of the text object. More...

virtual void	UpdateVertexData (TMP_VertexDataUpdateFlags flags)
	Function to push the updated vertex data into the mesh and renderer. More...

virtual void	UpdateVertexData ()
	Function to push the updated vertex data into the mesh and renderer. More...

virtual void	SetVertices (Vector3[] vertices)
	Function to push a new set of vertices to the mesh. More...

virtual void	UpdateMeshPadding ()
	Function to be used to force recomputing of character padding when Shader / Material properties have been changed via script. More...

override void	CrossFadeColor (Color targetColor, float duration, bool ignoreTimeScale, bool useAlpha)

override void	CrossFadeAlpha (float alpha, float duration, bool ignoreTimeScale)
	Tweens the alpha of the CanvasRenderer color associated with this Graphic. More...

void	SetText (string text)

void	SetText (string text, bool syncTextInputBox)

void	SetText (string text, float arg0)

void	SetText (string text, float arg0, float arg1)

void	SetText (string text, float arg0, float arg1, float arg2)

void	SetText (StringBuilder text)
	Set the text using a StringBuilder. More...

void	SetCharArray (char[] sourceText)
	Character array containing the text to be displayed. More...

void	SetCharArray (char[] sourceText, int start, int length)
	Character array containing the text to be displayed. More...

void	SetCharArray (int[] sourceText, int start, int length)
	Character array containing the text to be displayed. More...

Vector2	GetPreferredValues ()
	Function to Calculate the Preferred Width and Height of the text object. More...

Vector2	GetPreferredValues (float width, float height)
	Function to Calculate the Preferred Width and Height of the text object given the provided width and height. More...

Vector2	GetPreferredValues (string text)
	Function to Calculate the Preferred Width and Height of the text object given a certain string. More...

Vector2	GetPreferredValues (string text, float width, float height)
	Function to Calculate the Preferred Width and Height of the text object given a certain string and size of text container. More...

Vector2	GetRenderedValues ()
	Method returning the rendered width and height of the text object. More...

Vector2	GetRenderedValues (bool onlyVisibleCharacters)

virtual TMP_TextInfo	GetTextInfo (string text)
	Function used to evaluate the length of a text string. More...

virtual void	ComputeMarginSize ()
	Function to force an update of the margin size. More...

virtual void	ClearMesh ()
	Function to clear the geometry of the Primary and Sub Text objects. More...

virtual void	ClearMesh (bool uploadGeometry)
	Function to clear the geometry of the Primary and Sub Text objects. More...

virtual string	GetParsedText ()
	Function which returns the text after it has been parsed and rich text tags removed. More...

Protected Types
enum	TextInputSources { Text = 0, SetText = 1, SetCharArray = 2, String = 3 }

Protected Member Functions
virtual void	LoadFontAsset ()
	Method which derived classes need to override to load Font Assets. More...

virtual void	SetSharedMaterial (Material mat)
	Function called internally when a new shared material is assigned via the fontSharedMaterial property. More...

virtual Material	GetMaterial (Material mat)
	Function called internally when a new material is assigned via the fontMaterial property. More...

virtual void	SetFontBaseMaterial (Material mat)
	Function called internally when assigning a new base material. More...

virtual Material []	GetSharedMaterials ()
	Method which returns an array containing the materials used by the text object. More...

virtual void	SetSharedMaterials (Material[] materials)

virtual Material []	GetMaterials (Material[] mats)
	Method returning instances of the materials used by the text object. More...

virtual Material	CreateMaterialInstance (Material source)
	Method to set the materials of the text and sub text objects. More...

void	SetVertexColorGradient (TMP_ColorGradient gradient)

void	SetTextSortingOrder (VertexSortingOrder order)
	Function to control the sorting of the geometry of the text object. More...

void	SetTextSortingOrder (int[] order)
	Function to sort the geometry of the text object in accordance to the provided order. More...

virtual void	SetFaceColor (Color32 color)
	Function called internally to set the face color of the material. This will results in an instance of the material. More...

virtual void	SetOutlineColor (Color32 color)
	Function called internally to set the outline color of the material. This will results in an instance of the material. More...

virtual void	SetOutlineThickness (float thickness)
	Function called internally to set the outline thickness property of the material. This will results in an instance of the material. More...

virtual void	SetShaderDepth ()
	Set the Render Queue and ZTest mode on the current material More...

virtual void	SetCulling ()
	Set the culling mode on the material. More...

virtual float	GetPaddingForMaterial ()
	Get the padding value for the currently assigned material More...

virtual float	GetPaddingForMaterial (Material mat)
	Get the padding value for the given material More...

virtual Vector3 []	GetTextContainerLocalCorners ()
	Method to return the local corners of the Text Container or RectTransform. More...

virtual void	InternalCrossFadeColor (Color targetColor, float duration, bool ignoreTimeScale, bool useAlpha)

virtual void	InternalCrossFadeAlpha (float alpha, float duration, bool ignoreTimeScale)

void	ParseInputText ()
	Method to parse the input text based on its source More...

void	SetTextArrayToCharArray (char[] sourceText, ref int[] charBuffer)
	Copies Content of formatted SetText() to charBuffer. More...

void	StringToCharArray (string sourceText, ref int[] charBuffer)
	Method to store the content of a string into an integer array. More...

void	StringBuilderToIntArray (StringBuilder sourceText, ref int[] charBuffer)
	Copy contents of StringBuilder into int array. More...

void	AddFloatToCharArray (float number, ref int index, int precision)
	Function used in conjunction with SetText() More...

void	AddIntToCharArray (int number, ref int index, int precision)
	// Function used in conjunction with SetText() More...

virtual int	SetArraySizes (int[] chars)
	Method used to determine the number of visible characters and required buffer allocations. More...

virtual void	GenerateTextMesh ()
	Method which parses the text input, does the layout of the text as well as generating the geometry. More...

float	GetPreferredWidth ()
	Method to calculate the preferred width of a text object. More...

float	GetPreferredWidth (Vector2 margin)
	Method to calculate the preferred width of a text object. More...

float	GetPreferredHeight ()
	Method to calculate the preferred height of a text object. More...

float	GetPreferredHeight (Vector2 margin)
	Method to calculate the preferred height of a text object. More...

float	GetRenderedWidth ()
	Method returning the rendered width of the text object. More...

float	GetRenderedWidth (bool onlyVisibleCharacters)
	Method returning the rendered width of the text object. More...

float	GetRenderedHeight ()
	Method returning the rendered height of the text object. More...

float	GetRenderedHeight (bool onlyVisibleCharacters)
	Method returning the rendered height of the text object. More...

virtual Vector2	CalculatePreferredValues (float defaultFontSize, Vector2 marginSize, bool ignoreTextAutoSizing)
	Method to calculate the preferred width and height of the text object. More...

virtual Bounds	GetCompoundBounds ()
	Method returning the compound bounds of the text object and child sub objects. More...

Bounds	GetTextBounds ()
	Method which returns the bounds of the text object; More...

Bounds	GetTextBounds (bool onlyVisibleCharacters)
	Method which returns the bounds of the text object; More...

virtual void	AdjustLineOffset (int startIndex, int endIndex, float offset)
	Method to adjust line spacing as a result of using different fonts or font point size. More...

void	ResizeLineExtents (int size)
	Function to increase the size of the Line Extents Array. More...

void	SaveWordWrappingState (ref WordWrapState state, int index, int count)
	Function used in conjunction with GetTextInfo to figure out Array allocations. More...

int	RestoreWordWrappingState (ref WordWrapState state)
	Restore the State of various variables used in the mesh creation loop. More...

virtual void	SaveGlyphVertexInfo (float padding, float style_padding, Color32 vertexColor)
	Store vertex information for each character. More...

virtual void	SaveSpriteVertexInfo (Color32 vertexColor)
	Store vertex information for each sprite. More...

virtual void	FillCharacterVertexBuffers (int i, int index_X4)
	Store vertex attributes into the appropriate TMP_MeshInfo. More...

virtual void	FillCharacterVertexBuffers (int i, int index_X4, bool isVolumetric)

virtual void	FillSpriteVertexBuffers (int i, int index_X4)
	Fill Vertex Buffers for Sprites More...

virtual void	DrawUnderlineMesh (Vector3 start, Vector3 end, ref int index, float startScale, float endScale, float maxScale, float sdfScale, Color32 underlineColor)
	Method to add the underline geometry. More...

virtual void	DrawTextHighlight (Vector3 start, Vector3 end, ref int index, Color32 highlightColor)

void	LoadDefaultSettings ()
	Internal function used to load the default settings of text objects. More...

void	GetSpecialCharacters (TMP_FontAsset fontAsset)
	Method used to find and cache references to the Underline and Ellipsis characters. More...

void	ReplaceTagWithCharacter (int[] chars, int insertionIndex, int tagLength, char c)
	Replace a given number of characters (tag) in the array with a new character and shift subsequent characters in the array. More...

TMP_FontAsset	GetFontAssetForWeight (int fontWeight)

virtual void	SetActiveSubMeshes (bool state)
	Method to Enable or Disable child SubMesh objects. More...

virtual void	ClearSubMeshObjects ()
	Destroy Sub Mesh Objects. More...

Vector2	PackUV (float x, float y, float scale)
	Function to pack scale information in the UV2 Channel. More...

float	PackUV (float x, float y)

int	HexToInt (char hex)
	Function to pack scale information in the UV2 Channel. More...

int	GetUTF16 (string text, int i)
	Convert UTF-16 Hex to Char More...

int	GetUTF16 (StringBuilder text, int i)
	Convert UTF-16 Hex to Char More...

int	GetUTF32 (string text, int i)
	Convert UTF-32 Hex to Char More...

int	GetUTF32 (StringBuilder text, int i)
	Convert UTF-32 Hex to Char More...

Color32	HexCharsToColor (char[] hexChars, int tagCount)
	Method to convert Hex color values to Color32 More...

Color32	HexCharsToColor (char[] hexChars, int startIndex, int length)
	Method to convert Hex Color values to Color32 More...

float	ConvertToFloat (char[] chars, int startIndex, int length)
	Extracts a float value from char[] assuming we know the position of the start, end and decimal point. More...

float	ConvertToFloat (char[] chars, int startIndex, int length, out int lastIndex)
	Extracts a float value from char[] given a start index and length. More...

bool	ValidateHtmlTag (int[] chars, int startIndex, out int endIndex)
	Function to identify and validate the rich tag. Returns the position of the > if the tag was valid. More...

Protected Attributes
string	m_text

bool	m_isRightToLeft = false

TMP_FontAsset	m_fontAsset

TMP_FontAsset	m_currentFontAsset

bool	m_isSDFShader

Material	m_sharedMaterial

Material	m_currentMaterial

MaterialReference []	m_materialReferences = new MaterialReference[32]

Dictionary< int, int >	m_materialReferenceIndexLookup = new Dictionary<int, int>()

TMP_XmlTagStack< MaterialReference >	m_materialReferenceStack = new TMP_XmlTagStack<MaterialReference>(new MaterialReference[16])

int	m_currentMaterialIndex

Material []	m_fontSharedMaterials

Material	m_fontMaterial

Material []	m_fontMaterials

bool	m_isMaterialDirty

Color32	m_fontColor32 = Color.white

Color	m_fontColor = Color.white

Color32	m_underlineColor = s_colorWhite

Color32	m_strikethroughColor = s_colorWhite

Color32	m_highlightColor = s_colorWhite

bool	m_enableVertexGradient

ColorMode	m_colorMode = ColorMode.FourCornersGradient

VertexGradient	m_fontColorGradient = new VertexGradient(Color.white)

TMP_ColorGradient	m_fontColorGradientPreset

TMP_SpriteAsset	m_spriteAsset

bool	m_tintAllSprites

bool	m_tintSprite

Color32	m_spriteColor

bool	m_overrideHtmlColors = false

Color32	m_faceColor = Color.white

Color32	m_outlineColor = Color.black

float	m_outlineWidth = 0.0f

float	m_fontSize = 36

float	m_currentFontSize

float	m_fontSizeBase = 36

TMP_XmlTagStack< float >	m_sizeStack = new TMP_XmlTagStack<float>(new float[16])

int	m_fontWeight = 400

int	m_fontWeightInternal

TMP_XmlTagStack< int >	m_fontWeightStack = new TMP_XmlTagStack<int>(new int[16])

bool	m_enableAutoSizing

float	m_maxFontSize

float	m_minFontSize

float	m_fontSizeMin = 0

float	m_fontSizeMax = 0

FontStyles	m_fontStyle = FontStyles.Normal

FontStyles	m_style = FontStyles.Normal

TMP_BasicXmlTagStack	m_fontStyleStack

bool	m_isUsingBold = false

TextAlignmentOptions	m_textAlignment = TextAlignmentOptions.TopLeft

TextAlignmentOptions	m_lineJustification

TMP_XmlTagStack< TextAlignmentOptions >	m_lineJustificationStack = new TMP_XmlTagStack<TextAlignmentOptions>(new TextAlignmentOptions[16])

Vector3 []	m_textContainerLocalCorners = new Vector3[4]

bool	m_isAlignmentEnumConverted

float	m_characterSpacing = 0

float	m_cSpacing = 0

float	m_monoSpacing = 0

float	m_wordSpacing = 0

float	m_lineSpacing = 0

float	m_lineSpacingDelta = 0

float	m_lineHeight = TMP_Math.FLOAT_UNSET

float	m_lineSpacingMax = 0

float	m_paragraphSpacing = 0

float	m_charWidthMaxAdj = 0f

float	m_charWidthAdjDelta = 0

bool	m_enableWordWrapping = false

bool	m_isCharacterWrappingEnabled = false

bool	m_isNonBreakingSpace = false

bool	m_isIgnoringAlignment

float	m_wordWrappingRatios = 0.4f

TextOverflowModes	m_overflowMode = TextOverflowModes.Overflow

int	m_firstOverflowCharacterIndex = -1

TMP_Text	m_linkedTextComponent

bool	m_isLinkedTextComponent

bool	m_isTextTruncated

bool	m_enableKerning

bool	m_enableExtraPadding = false

bool	checkPaddingRequired

bool	m_isRichText = true

bool	m_parseCtrlCharacters = true

bool	m_isOverlay = false

bool	m_isOrthographic = false

bool	m_isCullingEnabled = false

bool	m_ignoreRectMaskCulling

bool	m_ignoreCulling = true

TextureMappingOptions	m_horizontalMapping = TextureMappingOptions.Character

TextureMappingOptions	m_verticalMapping = TextureMappingOptions.Character

float	m_uvLineOffset = 0.0f

TextRenderFlags	m_renderMode = TextRenderFlags.Render

VertexSortingOrder	m_geometrySortingOrder

int	m_firstVisibleCharacter

int	m_maxVisibleCharacters = 99999

int	m_maxVisibleWords = 99999

int	m_maxVisibleLines = 99999

bool	m_useMaxVisibleDescender = true

int	m_pageToDisplay = 1

bool	m_isNewPage = false

Vector4	m_margin = new Vector4(0, 0, 0, 0)

float	m_marginLeft

float	m_marginRight

float	m_marginWidth

float	m_marginHeight

float	m_width = -1

TMP_TextInfo	m_textInfo

bool	m_havePropertiesChanged

bool	m_isUsingLegacyAnimationComponent

Transform	m_transform

RectTransform	m_rectTransform

bool	m_autoSizeTextContainer

Mesh	m_mesh

bool	m_isVolumetricText

TMP_SpriteAnimator	m_spriteAnimator

float	m_flexibleHeight = -1f

float	m_flexibleWidth = -1f

float	m_minWidth

float	m_minHeight

float	m_maxWidth

float	m_maxHeight

LayoutElement	m_LayoutElement

float	m_preferredWidth

float	m_renderedWidth

bool	m_isPreferredWidthDirty

float	m_preferredHeight

float	m_renderedHeight

bool	m_isPreferredHeightDirty

bool	m_isCalculatingPreferredValues

int	m_layoutPriority = 0

bool	m_isCalculateSizeRequired = false

bool	m_isLayoutDirty

bool	m_verticesAlreadyDirty

bool	m_layoutAlreadyDirty

bool	m_isAwake

bool	m_isWaitingOnResourceLoad

bool	m_isInputParsingRequired = false

TextInputSources	m_inputSource

string	old_text

float	m_fontScale

float	m_fontScaleMultiplier

char []	m_htmlTag = new char[128]

XML_TagAttribute []	m_xmlAttribute = new XML_TagAttribute[8]

float []	m_attributeParameterValues = new float[16]

float	tag_LineIndent = 0

float	tag_Indent = 0

TMP_XmlTagStack< float >	m_indentStack = new TMP_XmlTagStack<float>(new float[16])

bool	tag_NoParsing

bool	m_isParsingText

Matrix4x4	m_FXMatrix

bool	m_isFXMatrixSet

int []	m_char_buffer

char []	m_input_CharArray = new char[256]

int	m_totalCharacterCount

WordWrapState	m_SavedWordWrapState = new WordWrapState()

WordWrapState	m_SavedLineState = new WordWrapState()

int	m_characterCount

int	m_firstCharacterOfLine

int	m_firstVisibleCharacterOfLine

int	m_lastCharacterOfLine

int	m_lastVisibleCharacterOfLine

int	m_lineNumber

int	m_lineVisibleCharacterCount

int	m_pageNumber

float	m_maxAscender

float	m_maxCapHeight

float	m_maxDescender

float	m_maxLineAscender

float	m_maxLineDescender

float	m_startOfLineAscender

float	m_lineOffset

Extents	m_meshExtents

Color32	m_htmlColor = new Color(255, 255, 255, 128)

TMP_XmlTagStack< Color32 >	m_colorStack = new TMP_XmlTagStack<Color32>(new Color32[16])

TMP_XmlTagStack< Color32 >	m_underlineColorStack = new TMP_XmlTagStack<Color32>(new Color32[16])

TMP_XmlTagStack< Color32 >	m_strikethroughColorStack = new TMP_XmlTagStack<Color32>(new Color32[16])

TMP_XmlTagStack< Color32 >	m_highlightColorStack = new TMP_XmlTagStack<Color32>(new Color32[16])

TMP_ColorGradient	m_colorGradientPreset

TMP_XmlTagStack< TMP_ColorGradient >	m_colorGradientStack = new TMP_XmlTagStack<TMP_ColorGradient>(new TMP_ColorGradient[16])

float	m_tabSpacing = 0

float	m_spacing = 0

TMP_XmlTagStack< int >	m_styleStack = new TMP_XmlTagStack<int>(new int[16])

TMP_XmlTagStack< int >	m_actionStack = new TMP_XmlTagStack<int>(new int[16])

float	m_padding = 0

float	m_baselineOffset

TMP_XmlTagStack< float >	m_baselineOffsetStack = new TMP_XmlTagStack<float>(new float[16])

float	m_xAdvance

TMP_TextElementType	m_textElementType

TMP_TextElement	m_cached_TextElement

TMP_Glyph	m_cached_Underline_GlyphInfo

TMP_Glyph	m_cached_Ellipsis_GlyphInfo

TMP_SpriteAsset	m_defaultSpriteAsset

TMP_SpriteAsset	m_currentSpriteAsset

int	m_spriteCount = 0

int	m_spriteIndex

int	m_spriteAnimationID

bool	m_ignoreActiveState

Static Protected Attributes
static Color32	s_colorWhite = new Color32(255, 255, 255, 255)

static Vector2	k_LargePositiveVector2 = new Vector2(TMP_Math.INT_MAX, TMP_Math.INT_MAX)

static Vector2	k_LargeNegativeVector2 = new Vector2(TMP_Math.INT_MIN, TMP_Math.INT_MIN)

static float	k_LargePositiveFloat = TMP_Math.FLOAT_MAX

static float	k_LargeNegativeFloat = TMP_Math.FLOAT_MIN

static int	k_LargePositiveInt = TMP_Math.INT_MAX

static int	k_LargeNegativeInt = TMP_Math.INT_MIN

Properties
string	text `[get, set]`
	A string containing the text to be displayed. More...

bool	isRightToLeftText `[get, set]`

TMP_FontAsset	font `[get, set]`
	The Font Asset to be assigned to this text object. More...

virtual Material	fontSharedMaterial `[get, set]`
	The material to be assigned to this text object. More...

virtual Material []	fontSharedMaterials `[get, set]`
	An array containing the materials used by the text object. More...

Material	fontMaterial `[get, set]`
	The material to be assigned to this text object. An instance of the material will be assigned to the object's renderer. More...

virtual Material []	fontMaterials `[get, set]`
	The materials to be assigned to this text object. An instance of the materials will be assigned. More...

override Color	color `[get, set]`
	This is the default vertex color assigned to each vertices. Color tags will override vertex colors unless the overrideColorTags is set. More...

float	alpha `[get, set]`
	Sets the vertex color alpha value. More...

bool	enableVertexGradient `[get, set]`
	Determines if Vertex Color Gradient should be used More...

VertexGradient	colorGradient `[get, set]`
	Sets the vertex colors for each of the 4 vertices of the character quads. More...

TMP_ColorGradient	colorGradientPreset `[get, set]`
	Set the vertex colors of the 4 vertices of each character quads. More...

TMP_SpriteAsset	spriteAsset `[get, set]`
	Default Sprite Asset used by the text object. More...

bool	tintAllSprites `[get, set]`
	Determines whether or not the sprite color is multiplies by the vertex color of the text. More...

bool	overrideColorTags `[get, set]`
	This overrides the color tags forcing the vertex colors to be the default font color. More...

Color32	faceColor `[get, set]`
	Sets the color of the _FaceColor property of the assigned material. Changing face color will result in an instance of the material. More...

Color32	outlineColor `[get, set]`
	Sets the color of the _OutlineColor property of the assigned material. Changing outline color will result in an instance of the material. More...

float	outlineWidth `[get, set]`
	Sets the thickness of the outline of the font. Setting this value will result in an instance of the material. More...

float	fontSize `[get, set]`
	The point size of the font. More...

float	fontScale `[get]`
	The scale of the current text. More...

int	fontWeight `[get, set]`
	Control the weight of the font if an alternative font asset is assigned for the given weight in the font asset editor. More...

float	pixelsPerUnit `[get]`

bool	enableAutoSizing `[get, set]`
	Enable text auto-sizing More...

float	fontSizeMin `[get, set]`
	Minimum point size of the font when text auto-sizing is enabled. More...

float	fontSizeMax `[get, set]`
	Maximum point size of the font when text auto-sizing is enabled. More...

FontStyles	fontStyle `[get, set]`
	The style of the text More...

bool	isUsingBold `[get]`
	Property used in conjunction with padding calculation for the geometry. More...

TextAlignmentOptions	alignment `[get, set]`
	Text alignment options More...

float	characterSpacing `[get, set]`
	Use the extents of the text geometry for alignment instead of font metrics. More...

float	wordSpacing `[get, set]`
	The amount of additional spacing between words. More...

float	lineSpacing `[get, set]`
	The amount of additional spacing to add between each lines of text. More...

float	lineSpacingAdjustment `[get, set]`
	The amount of potential line spacing adjustment before text auto sizing kicks in. More...

float	paragraphSpacing `[get, set]`
	The amount of additional spacing to add between each lines of text. More...

float	characterWidthAdjustment `[get, set]`
	Percentage the width of characters can be adjusted before text auto-sizing begins to reduce the point size. More...

bool	enableWordWrapping `[get, set]`
	Controls whether or not word wrapping is applied. When disabled, the text will be displayed on a single line. More...

float	wordWrappingRatios `[get, set]`
	Controls the blending between using character and word spacing to fill-in the space for justified text. More...

TextOverflowModes	overflowMode `[get, set]`

bool	isTextOverflowing `[get]`
	Indicates if the text exceeds the vertical bounds of its text container. More...

int	firstOverflowCharacterIndex `[get]`
	The first character which exceeds the vertical bounds of its text container. More...

TMP_Text	linkedTextComponent `[get, set]`
	The linked text component used for flowing the text from one text component to another. More...

bool	isLinkedTextComponent `[get, set]`
	Indicates whether this text component is linked to another. More...

bool	isTextTruncated `[get]`
	Property indicating whether the text is Truncated or using Ellipsis. More...

bool	enableKerning `[get, set]`
	Determines if kerning is enabled or disabled. More...

bool	extraPadding `[get, set]`
	Adds extra padding around each character. This may be necessary when the displayed text is very small to prevent clipping. More...

bool	richText `[get, set]`
	Enables or Disables Rich Text Tags More...

bool	parseCtrlCharacters `[get, set]`
	Enables or Disables parsing of CTRL characters in input text. More...

bool	isOverlay `[get, set]`
	Sets the RenderQueue along with Ztest to force the text to be drawn last and on top of scene elements. More...

bool	isOrthographic `[get, set]`
	Sets Perspective Correction to Zero for Orthographic Camera mode & 0.875f for Perspective Camera mode. More...

bool	enableCulling `[get, set]`
	Sets the culling on the shaders. Note changing this value will result in an instance of the material. More...

bool	ignoreRectMaskCulling `[get, set]`
	Controls whether or not the text object will be culled when using a 2D Rect Mask. More...

bool	ignoreVisibility `[get, set]`
	Forces objects that are not visible to get refreshed. More...

TextureMappingOptions	horizontalMapping `[get, set]`
	Controls how the face and outline textures will be applied to the text object. More...

TextureMappingOptions	verticalMapping `[get, set]`
	Controls how the face and outline textures will be applied to the text object. More...

float	mappingUvLineOffset `[get, set]`
	Controls the UV Offset for the various texture mapping mode on the text object. More...

TextRenderFlags	renderMode `[get, set]`
	Determines if the Mesh will be rendered. More...

VertexSortingOrder	geometrySortingOrder `[get, set]`
	Determines the sorting order of the geometry of the text object. More...

int	firstVisibleCharacter `[get, set]`
	The first character which should be made visible in conjunction with the Text Overflow Linked mode. More...

int	maxVisibleCharacters `[get, set]`
	Allows to control how many characters are visible from the input. More...

int	maxVisibleWords `[get, set]`
	Allows to control how many words are visible from the input. More...

int	maxVisibleLines `[get, set]`
	Allows control over how many lines of text are displayed. More...

bool	useMaxVisibleDescender `[get, set]`
	Determines if the text's vertical alignment will be adjusted based on visible descender of the text. More...

int	pageToDisplay `[get, set]`
	Controls which page of text is shown More...

virtual Vector4	margin `[get, set]`
	The margins of the text object. More...

TMP_TextInfo	textInfo `[get]`
	Returns data about the text object which includes information about each character, word, line, link, etc. More...

bool	havePropertiesChanged `[get, set]`
	Property tracking if any of the text properties have changed. Flag is set before the text is regenerated. More...

bool	isUsingLegacyAnimationComponent `[get, set]`
	Property to handle legacy animation component. More...

new Transform	transform `[get]`
	Returns are reference to the Transform More...

new RectTransform	rectTransform `[get]`
	Returns are reference to the RectTransform More...

virtual bool	autoSizeTextContainer `[get, set]`
	Enables control over setting the size of the text container to match the text object. More...

virtual Mesh	mesh `[get]`
	The mesh used by the font asset and material assigned to the text object. More...

bool	isVolumetricText `[get, set]`
	Determines if the geometry of the characters will be quads or volumetric (cubes). More...

Bounds	bounds `[get]`
	Returns the bounds of the mesh of the text object in world space. More...

Bounds	textBounds `[get]`
	Returns the bounds of the text of the text object. More...

TMP_SpriteAnimator	spriteAnimator `[get]`
	Component used to control wrapping of text following some arbitrary shape. More...

float	flexibleHeight `[get]`

float	flexibleWidth `[get]`

float	minWidth `[get]`

float	minHeight `[get]`

float	maxWidth `[get]`

float	maxHeight `[get]`

LayoutElement	layoutElement `[get]`

virtual float	preferredWidth `[get]`
	Computed preferred width of the text object. More...

virtual float	preferredHeight `[get]`
	Computed preferred height of the text object. More...

virtual float	renderedWidth `[get]`
	Compute the rendered width of the text object. More...

virtual float	renderedHeight `[get]`
	Compute the rendered height of the text object. More...

int	layoutPriority `[get]`

Private Member Functions
internal void	SetTextInternal (string text)
	Internal function used by the Text Input Field to populate TMP_TextInfo data. More...

bool	ReplaceOpeningStyleTag (ref string sourceText, int srcIndex, out int srcOffset, ref int[] charBuffer, ref int writeIndex)
	Method to handle inline replacement of style tag by opening style definition. More...

bool	ReplaceOpeningStyleTag (ref int[] sourceText, int srcIndex, out int srcOffset, ref int[] charBuffer, ref int writeIndex)
	Method to handle inline replacement of style tag by opening style definition. More...

bool	ReplaceOpeningStyleTag (ref char[] sourceText, int srcIndex, out int srcOffset, ref int[] charBuffer, ref int writeIndex)
	Method to handle inline replacement of style tag by opening style definition. More...

bool	ReplaceOpeningStyleTag (ref StringBuilder sourceText, int srcIndex, out int srcOffset, ref int[] charBuffer, ref int writeIndex)
	Method to handle inline replacement of style tag by opening style definition. More...

bool	ReplaceClosingStyleTag (ref string sourceText, int srcIndex, ref int[] charBuffer, ref int writeIndex)
	Method to handle inline replacement of style tag by closing style definition. More...

bool	ReplaceClosingStyleTag (ref int[] sourceText, int srcIndex, ref int[] charBuffer, ref int writeIndex)
	Method to handle inline replacement of style tag by closing style definition. More...

bool	ReplaceClosingStyleTag (ref char[] sourceText, int srcIndex, ref int[] charBuffer, ref int writeIndex)
	Method to handle inline replacement of style tag by closing style definition. More...

bool	ReplaceClosingStyleTag (ref StringBuilder sourceText, int srcIndex, ref int[] charBuffer, ref int writeIndex)
	Method to handle inline replacement of style tag by closing style definition. More...

bool	IsTagName (ref string text, string tag, int index)
	Method to check for a matching rich text tag. More...

bool	IsTagName (ref char[] text, string tag, int index)
	Method to check for a matching rich text tag. More...

bool	IsTagName (ref int[] text, string tag, int index)
	Method to check for a matching rich text tag. More...

bool	IsTagName (ref StringBuilder text, string tag, int index)
	Method to check for a matching rich text tag. More...

int	GetTagHashCode (ref string text, int index, out int closeIndex)
	Get Hashcode for a given tag. More...

int	GetTagHashCode (ref char[] text, int index, out int closeIndex)
	Get Hashcode for a given tag. More...

int	GetTagHashCode (ref int[] text, int index, out int closeIndex)
	Get Hashcode for a given tag. More...

int	GetTagHashCode (ref StringBuilder text, int index, out int closeIndex)
	Get Hashcode for a given tag. More...

void	ResizeInternalArray< T > (ref T[] array)

int	GetAttributeParameters (char[] chars, int startIndex, int length, ref float[] parameters)
	Method which returns the number of parameters used in a tag attribute and populates an array with such values. More...

Private Attributes
int	m_recursiveCount

TMP_CharacterInfo []	m_internalCharacterInfo

int	m_charArray_Length = 0

readonly float []	k_Power = { 5e-1f, 5e-2f, 5e-3f, 5e-4f, 5e-5f, 5e-6f, 5e-7f, 5e-8f, 5e-9f, 5e-10f }

Detailed Description

Base class which contains common properties and functions shared between the TextMeshPro and TextMeshProUGUI component.

Definition at line 110 of file TMP_Text.cs.

Member Function Documentation

◆ AddFloatToCharArray()

void TMPro.TMP_Text.AddFloatToCharArray	(	float	number,
		ref int	index,
		int	precision
	)

inlineprotected

Function used in conjunction with SetText()

Parameters

number
index
precision

Definition at line 3326 of file TMP_Text.cs.

◆ AddIntToCharArray()

void TMPro.TMP_Text.AddIntToCharArray	(	int	number,
		ref int	index,
		int	precision
	)

inlineprotected

// Function used in conjunction with SetText()

Parameters

number
index
precision

Definition at line 3363 of file TMP_Text.cs.

◆ AdjustLineOffset()

virtual void TMPro.TMP_Text.AdjustLineOffset	(	int	startIndex,
		int	endIndex,
		float	offset
	)

inlineprotectedvirtual

Method to adjust line spacing as a result of using different fonts or font point size.

Parameters

startIndex
endIndex
offset

Reimplemented in TMPro.TextMeshProUGUI, and TMPro.TextMeshPro.

Definition at line 4498 of file TMP_Text.cs.

◆ CalculatePreferredValues()

virtual Vector2 TMPro.TMP_Text.CalculatePreferredValues	(	float	defaultFontSize,
		Vector2	marginSize,
		bool	ignoreTextAutoSizing
	)

inlineprotectedvirtual

Method to calculate the preferred width and height of the text object.

Returns

Definition at line 3677 of file TMP_Text.cs.

◆ ClearMesh() [1/2]

virtual void TMPro.TMP_Text.ClearMesh ( )

inlinevirtual

Function to clear the geometry of the Primary and Sub Text objects.

Reimplemented in TMPro.TextMeshProUGUI.

Definition at line 5521 of file TMP_Text.cs.

◆ ClearMesh() [2/2]

virtual void TMPro.TMP_Text.ClearMesh ( bool uploadGeometry )

inlinevirtual

Function to clear the geometry of the Primary and Sub Text objects.

Reimplemented in TMPro.TextMeshPro.

Definition at line 5527 of file TMP_Text.cs.

◆ ClearSubMeshObjects()

virtual void TMPro.TMP_Text.ClearSubMeshObjects ( )

inlineprotectedvirtual

Destroy Sub Mesh Objects.

Reimplemented in TMPro.TextMeshPro.

Definition at line 5515 of file TMP_Text.cs.

◆ ComputeMarginSize()

virtual void TMPro.TMP_Text.ComputeMarginSize ( )

inlinevirtual

Function to force an update of the margin size.

Reimplemented in TMPro.TextMeshProUGUI, and TMPro.TextMeshPro.

Definition at line 4544 of file TMP_Text.cs.

◆ ConvertToFloat() [1/2]

float TMPro.TMP_Text.ConvertToFloat	(	char []	chars,
		int	startIndex,
		int	length
	)

inlineprotected

Extracts a float value from char[] assuming we know the position of the start, end and decimal point.

Parameters

chars
startIndex
length

Returns

Definition at line 5894 of file TMP_Text.cs.

◆ ConvertToFloat() [2/2]

float TMPro.TMP_Text.ConvertToFloat	(	char []	chars,
		int	startIndex,
		int	length,
		out int	lastIndex
	)

inlineprotected

Extracts a float value from char[] given a start index and length.

Parameters

chars

The Char[] containing the numerical sequence.

Parameters

startIndex

The index of the start of the numerical sequence.

Parameters

length

The length of the numerical sequence.

Parameters

lastIndex

Index of the last character in the validated sequence.

Returns

Definition at line 5909 of file TMP_Text.cs.

◆ CreateMaterialInstance()

virtual Material TMPro.TMP_Text.CreateMaterialInstance ( Material source )

inlineprotectedvirtual

Method to set the materials of the text and sub text objects.

Parameters

mats

Function used to create an instance of the material

Parameters

source

Returns

Definition at line 1463 of file TMP_Text.cs.

◆ CrossFadeAlpha()

override void TMPro.TMP_Text.CrossFadeAlpha	(	float	alpha,
		float	duration,
		bool	ignoreTimeScale
	)

inline

Tweens the alpha of the CanvasRenderer color associated with this Graphic.

Parameters

alpha	Target alpha.
duration	Duration of the tween in seconds.
ignoreTimeScale	Should ignore Time.scale?

Definition at line 1650 of file TMP_Text.cs.

◆ CrossFadeColor()

override void TMPro.TMP_Text.CrossFadeColor	(	Color	targetColor,
		float	duration,
		bool	ignoreTimeScale,
		bool	useAlpha
	)

inline

Tweens the CanvasRenderer color associated with this Graphic.

Parameters

targetColor	Target color.
duration	Tween duration.
ignoreTimeScale	Should ignore Time.scale?
useAlpha	Should also Tween the alpha channel?

Definition at line 1637 of file TMP_Text.cs.

◆ DrawUnderlineMesh()

virtual void TMPro.TMP_Text.DrawUnderlineMesh	(	Vector3	start,
		Vector3	end,
		ref int	index,
		float	startScale,
		float	endScale,
		float	maxScale,
		float	sdfScale,
		Color32	underlineColor
	)

inlineprotectedvirtual

Method to add the underline geometry.

Parameters

start
end
startScale
endScale
maxScale
underlineColor

Definition at line 5167 of file TMP_Text.cs.

◆ FillCharacterVertexBuffers()

virtual void TMPro.TMP_Text.FillCharacterVertexBuffers	(	int	i,
		int	index_X4
	)

inlineprotectedvirtual

Store vertex attributes into the appropriate TMP_MeshInfo.

Parameters

i
index_X4

Definition at line 4977 of file TMP_Text.cs.

◆ FillSpriteVertexBuffers()

virtual void TMPro.TMP_Text.FillSpriteVertexBuffers	(	int	i,
		int	index_X4
	)

inlineprotectedvirtual

Fill Vertex Buffers for Sprites

Parameters

i
spriteIndex_X4

Definition at line 5112 of file TMP_Text.cs.

◆ ForceMeshUpdate() [1/2]

virtual void TMPro.TMP_Text.ForceMeshUpdate ( )

inlinevirtual

Function to force the regeneration of the text object.

Reimplemented in TMPro.TextMeshProUGUI, and TMPro.TextMeshPro.

Definition at line 1555 of file TMP_Text.cs.

◆ ForceMeshUpdate() [2/2]

virtual void TMPro.TMP_Text.ForceMeshUpdate ( bool ignoreActiveState )

inlinevirtual

Method used for resetting vertex layout when switching to and from Volumetric Text mode.

Parameters

updateMesh

Function to force the regeneration of the text object.

Parameters

ignoreActiveState If set to true, the text object will be regenerated regardless of is active state.

Reimplemented in TMPro.TextMeshProUGUI, and TMPro.TextMeshPro.

Definition at line 1569 of file TMP_Text.cs.

◆ GenerateTextMesh()

virtual void TMPro.TMP_Text.GenerateTextMesh ( )

inlineprotectedvirtual

Method which parses the text input, does the layout of the text as well as generating the geometry.

Reimplemented in TMPro.TextMeshProUGUI, and TMPro.TextMeshPro.

Definition at line 3404 of file TMP_Text.cs.

◆ GetAttributeParameters()

int TMPro.TMP_Text.GetAttributeParameters	(	char []	chars,
		int	startIndex,
		int	length,
		ref float []	parameters
	)

inlineprivate

Method which returns the number of parameters used in a tag attribute and populates an array with such values.

Parameters

chars	Char[] containing the tag attribute and data
startIndex	The index of the first char of the data
length	The length of the data
parameters	The number of parameters contained in the Char[]

Returns

Definition at line 5868 of file TMP_Text.cs.

◆ GetCompoundBounds()

virtual Bounds TMPro.TMP_Text.GetCompoundBounds ( )

inlineprotectedvirtual

Method returning the compound bounds of the text object and child sub objects.

Returns

Reimplemented in TMPro.TextMeshProUGUI, and TMPro.TextMeshPro.

Definition at line 4424 of file TMP_Text.cs.

◆ GetFontAssetForWeight()

TMP_FontAsset TMPro.TMP_Text.GetFontAssetForWeight ( int fontWeight )

inlineprotected

Returns

Returns

Definition at line 5488 of file TMP_Text.cs.

◆ GetMaterial()

virtual Material TMPro.TMP_Text.GetMaterial ( Material mat )

inlineprotectedvirtual

Function called internally when a new material is assigned via the fontMaterial property.

Reimplemented in TMPro.TextMeshProUGUI, and TMPro.TextMeshPro.

Definition at line 1427 of file TMP_Text.cs.

◆ GetMaterials()

virtual Material [] TMPro.TMP_Text.GetMaterials ( Material [] mats )

inlineprotectedvirtual

Method returning instances of the materials used by the text object.

Returns

Reimplemented in TMPro.TextMeshProUGUI, and TMPro.TextMeshPro.

Definition at line 1450 of file TMP_Text.cs.

◆ GetPaddingForMaterial() [1/2]

virtual float TMPro.TMP_Text.GetPaddingForMaterial ( )

inlineprotectedvirtual

Get the padding value for the currently assigned material

Returns

Reimplemented in TMPro.TextMeshProUGUI, and TMPro.TextMeshPro.

Definition at line 1533 of file TMP_Text.cs.

◆ GetPaddingForMaterial() [2/2]

virtual float TMPro.TMP_Text.GetPaddingForMaterial ( Material mat )

inlineprotectedvirtual

Get the padding value for the given material

Returns

Reimplemented in TMPro.TextMeshProUGUI, and TMPro.TextMeshPro.

Definition at line 1540 of file TMP_Text.cs.

◆ GetParsedText()

virtual string TMPro.TMP_Text.GetParsedText ( )

inlinevirtual

Function which returns the text after it has been parsed and rich text tags removed.

Returns

Definition at line 5534 of file TMP_Text.cs.

◆ GetPreferredHeight() [1/2]

float TMPro.TMP_Text.GetPreferredHeight ( )

inlineprotected

Method to calculate the preferred height of a text object.

Returns

Definition at line 3563 of file TMP_Text.cs.

◆ GetPreferredHeight() [2/2]

float TMPro.TMP_Text.GetPreferredHeight ( Vector2 margin )

inlineprotected

Method to calculate the preferred height of a text object.

Parameters

margin

Returns

Definition at line 3598 of file TMP_Text.cs.

◆ GetPreferredValues() [1/4]

Vector2 TMPro.TMP_Text.GetPreferredValues ( )

inline

Function to Calculate the Preferred Width and Height of the text object.

Returns

Definition at line 3411 of file TMP_Text.cs.

◆ GetPreferredValues() [2/4]

Vector2 TMPro.TMP_Text.GetPreferredValues	(	float	width,
		float	height
	)

inline

Function to Calculate the Preferred Width and Height of the text object given the provided width and height.

Returns

Definition at line 3433 of file TMP_Text.cs.

◆ GetPreferredValues() [3/4]

Vector2 TMPro.TMP_Text.GetPreferredValues ( string text )

inline

Function to Calculate the Preferred Width and Height of the text object given a certain string.

Parameters

text

Returns

Definition at line 3458 of file TMP_Text.cs.

◆ GetPreferredValues() [4/4]

Vector2 TMPro.TMP_Text.GetPreferredValues	(	string	text,
		float	width,
		float	height
	)

inline

Function to Calculate the Preferred Width and Height of the text object given a certain string and size of text container.

Parameters

text

Returns

Definition at line 3482 of file TMP_Text.cs.

◆ GetPreferredWidth() [1/2]

float TMPro.TMP_Text.GetPreferredWidth ( )

inlineprotected

Method to calculate the preferred width of a text object.

Returns

Definition at line 3505 of file TMP_Text.cs.

◆ GetPreferredWidth() [2/2]

float TMPro.TMP_Text.GetPreferredWidth ( Vector2 margin )

inlineprotected

Method to calculate the preferred width of a text object.

Parameters

margin

Returns

Definition at line 3541 of file TMP_Text.cs.

◆ GetRenderedHeight() [1/2]

float TMPro.TMP_Text.GetRenderedHeight ( )

inlineprotected

Method returning the rendered height of the text object.

Returns

Definition at line 3658 of file TMP_Text.cs.

◆ GetRenderedHeight() [2/2]

float TMPro.TMP_Text.GetRenderedHeight ( bool onlyVisibleCharacters )

inlineprotected

Method returning the rendered height of the text object.

Returns

Definition at line 3667 of file TMP_Text.cs.

◆ GetRenderedValues() [1/2]

Vector2 TMPro.TMP_Text.GetRenderedValues ( )

inline

Method returning the rendered width and height of the text object.

Returns

Definition at line 3620 of file TMP_Text.cs.

◆ GetRenderedValues() [2/2]

Vector2 TMPro.TMP_Text.GetRenderedValues ( bool onlyVisibleCharacters )

inline

Parameters

onlyVisibleCharacters Should returned value only factor in visible characters and exclude those greater than maxVisibleCharacters for instance.

Returns

Definition at line 3630 of file TMP_Text.cs.

◆ GetRenderedWidth() [1/2]

float TMPro.TMP_Text.GetRenderedWidth ( )

inlineprotected

Method returning the rendered width of the text object.

Returns

Definition at line 3640 of file TMP_Text.cs.

◆ GetRenderedWidth() [2/2]

float TMPro.TMP_Text.GetRenderedWidth ( bool onlyVisibleCharacters )

inlineprotected

Method returning the rendered width of the text object.

Returns

Definition at line 3649 of file TMP_Text.cs.

◆ GetSharedMaterials()

virtual Material [] TMPro.TMP_Text.GetSharedMaterials ( )

inlineprotectedvirtual

Method which returns an array containing the materials used by the text object.

Returns

Reimplemented in TMPro.TextMeshProUGUI, and TMPro.TextMeshPro.

Definition at line 1439 of file TMP_Text.cs.

◆ GetSpecialCharacters()

void TMPro.TMP_Text.GetSpecialCharacters ( TMP_FontAsset fontAsset )

inlineprotected

Method used to find and cache references to the Underline and Ellipsis characters.

Definition at line 5434 of file TMP_Text.cs.

◆ GetTagHashCode() [1/4]

int TMPro.TMP_Text.GetTagHashCode	(	ref string	text,
		int	index,
		out int	closeIndex
	)

inlineprivate

Get Hashcode for a given tag.

Parameters

text
index
closeIndex

Returns

Definition at line 3210 of file TMP_Text.cs.

◆ GetTagHashCode() [2/4]

int TMPro.TMP_Text.GetTagHashCode	(	ref char []	text,
		int	index,
		out int	closeIndex
	)

inlineprivate

Get Hashcode for a given tag.

Parameters

text
index
closeIndex

Returns

Definition at line 3236 of file TMP_Text.cs.

◆ GetTagHashCode() [3/4]

int TMPro.TMP_Text.GetTagHashCode	(	ref int []	text,
		int	index,
		out int	closeIndex
	)

inlineprivate

Get Hashcode for a given tag.

Parameters

text
index
closeIndex

Returns

Definition at line 3262 of file TMP_Text.cs.

◆ GetTagHashCode() [4/4]

int TMPro.TMP_Text.GetTagHashCode	(	ref StringBuilder	text,
		int	index,
		out int	closeIndex
	)

inlineprivate

Get Hashcode for a given tag.

Parameters

text
index
closeIndex

Returns

Definition at line 3288 of file TMP_Text.cs.

◆ GetTextBounds() [1/2]

Bounds TMPro.TMP_Text.GetTextBounds ( )

inlineprotected

Method which returns the bounds of the text object;

Returns

Definition at line 4431 of file TMP_Text.cs.

◆ GetTextBounds() [2/2]

Bounds TMPro.TMP_Text.GetTextBounds ( bool onlyVisibleCharacters )

inlineprotected

Method which returns the bounds of the text object;

Parameters

onlyVisibleCharacters

Returns

Definition at line 4463 of file TMP_Text.cs.

◆ GetTextContainerLocalCorners()

virtual Vector3 [] TMPro.TMP_Text.GetTextContainerLocalCorners ( )

inlineprotectedvirtual

Method to return the local corners of the Text Container or RectTransform.

Returns

Reimplemented in TMPro.TextMeshProUGUI, and TMPro.TextMeshPro.

Definition at line 1547 of file TMP_Text.cs.

◆ GetTextInfo()

virtual TMP_TextInfo TMPro.TMP_Text.GetTextInfo ( string text )

inlinevirtual

Function used to evaluate the length of a text string.

Parameters

text

Returns

Reimplemented in TMPro.TextMeshProUGUI, and TMPro.TextMeshPro.

Definition at line 4538 of file TMP_Text.cs.

◆ GetUTF16() [1/2]

int TMPro.TMP_Text.GetUTF16	(	string	text,
		int	i
	)

inlineprotected

Convert UTF-16 Hex to Char

Returns: The Unicode hex.

Parameters

i	The index.

Definition at line 5683 of file TMP_Text.cs.

◆ GetUTF16() [2/2]

int TMPro.TMP_Text.GetUTF16	(	StringBuilder	text,
		int	i
	)

inlineprotected

Convert UTF-16 Hex to Char

Returns: The Unicode hex.

Parameters

i	The index.

Definition at line 5698 of file TMP_Text.cs.

◆ GetUTF32() [1/2]

int TMPro.TMP_Text.GetUTF32	(	string	text,
		int	i
	)

inlineprotected

Convert UTF-32 Hex to Char

Returns: The Unicode hex.

Parameters

i	The index.

Definition at line 5714 of file TMP_Text.cs.

◆ GetUTF32() [2/2]

int TMPro.TMP_Text.GetUTF32	(	StringBuilder	text,
		int	i
	)

inlineprotected

Convert UTF-32 Hex to Char

Returns: The Unicode hex.

Parameters

i	The index.

Definition at line 5733 of file TMP_Text.cs.

◆ HexCharsToColor() [1/2]

Color32 TMPro.TMP_Text.HexCharsToColor	(	char []	hexChars,
		int	tagCount
	)

inlineprotected

Method to convert Hex color values to Color32

Parameters

hexChars
tagCount

Returns

Definition at line 5754 of file TMP_Text.cs.

◆ HexCharsToColor() [2/2]

Color32 TMPro.TMP_Text.HexCharsToColor	(	char []	hexChars,
		int	startIndex,
		int	length
	)

inlineprotected

Method to convert Hex Color values to Color32

Parameters

hexChars
startIndex
length

Returns

Definition at line 5836 of file TMP_Text.cs.

◆ HexToInt()

int TMPro.TMP_Text.HexToInt ( char hex )

inlineprotected

Function to pack scale information in the UV2 Channel.

Parameters

x
y
scale

Returns

Parameters

x
y

Returns

Method to convert Hex to Int

Parameters

hex

Returns

Definition at line 5647 of file TMP_Text.cs.

◆ InternalCrossFadeAlpha()

virtual void TMPro.TMP_Text.InternalCrossFadeAlpha	(	float	alpha,
		float	duration,
		bool	ignoreTimeScale
	)

inlineprotectedvirtual

Parameters

alpha
duration
ignoreTimeScale

Reimplemented in TMPro.TextMeshProUGUI.

Definition at line 1674 of file TMP_Text.cs.

◆ InternalCrossFadeColor()

virtual void TMPro.TMP_Text.InternalCrossFadeColor	(	Color	targetColor,
		float	duration,
		bool	ignoreTimeScale,
		bool	useAlpha
	)

inlineprotectedvirtual

Parameters

targetColor
duration
ignoreTimeScale
useAlpha
useRGB

Reimplemented in TMPro.TextMeshProUGUI.

Definition at line 1665 of file TMP_Text.cs.

◆ IsTagName() [1/4]

bool TMPro.TMP_Text.IsTagName	(	ref string	text,
		string	tag,
		int	index
	)

inlineprivate

Method to check for a matching rich text tag.

Parameters

text
tag
index

Returns

Definition at line 3134 of file TMP_Text.cs.

◆ IsTagName() [2/4]

bool TMPro.TMP_Text.IsTagName	(	ref char []	text,
		string	tag,
		int	index
	)

inlineprivate

Method to check for a matching rich text tag.

Parameters

text
tag
index

Returns

Definition at line 3153 of file TMP_Text.cs.

◆ IsTagName() [3/4]

bool TMPro.TMP_Text.IsTagName	(	ref int []	text,
		string	tag,
		int	index
	)

inlineprivate

Method to check for a matching rich text tag.

Parameters

text
tag
index

Returns

Definition at line 3172 of file TMP_Text.cs.

◆ IsTagName() [4/4]

bool TMPro.TMP_Text.IsTagName	(	ref StringBuilder	text,
		string	tag,
		int	index
	)

inlineprivate

Method to check for a matching rich text tag.

Parameters

text
tag
index

Returns

Definition at line 3191 of file TMP_Text.cs.

◆ LoadDefaultSettings()

void TMPro.TMP_Text.LoadDefaultSettings ( )

inlineprotected

Internal function used to load the default settings of text objects.

Definition at line 5394 of file TMP_Text.cs.

◆ LoadFontAsset()

virtual void TMPro.TMP_Text.LoadFontAsset ( )

inlineprotectedvirtual

Method which derived classes need to override to load Font Assets.

Reimplemented in TMPro.TextMeshProUGUI, and TMPro.TextMeshPro.

Definition at line 1416 of file TMP_Text.cs.

◆ PackUV() [1/2]

Vector2 TMPro.TMP_Text.PackUV	(	float	x,
		float	y,
		float	scale
	)

inlineprotected

Function to pack scale information in the UV2 Channel.

Parameters

x
y
scale

Returns

Function to pack scale information in the UV2 Channel.

Parameters

x
y
scale

Returns

Definition at line 5580 of file TMP_Text.cs.

◆ PackUV() [2/2]

float TMPro.TMP_Text.PackUV	(	float	x,
		float	y
	)

inlineprotected

Parameters

x
y

Returns

Definition at line 5600 of file TMP_Text.cs.

◆ ParseInputText()

void TMPro.TMP_Text.ParseInputText ( )

inlineprotected

Method to parse the input text based on its source

Definition at line 1680 of file TMP_Text.cs.

◆ ReplaceClosingStyleTag() [1/4]

bool TMPro.TMP_Text.ReplaceClosingStyleTag	(	ref string	sourceText,
		int	srcIndex,
		ref int []	charBuffer,
		ref int	writeIndex
	)

inlineprivate

Method to handle inline replacement of style tag by closing style definition.

Parameters

sourceText
srcIndex
charBuffer
writeIndex

Returns

Definition at line 2860 of file TMP_Text.cs.

◆ ReplaceClosingStyleTag() [2/4]

bool TMPro.TMP_Text.ReplaceClosingStyleTag	(	ref int []	sourceText,
		int	srcIndex,
		ref int []	charBuffer,
		ref int	writeIndex
	)

inlineprivate

Method to handle inline replacement of style tag by closing style definition.

Parameters

sourceText
srcIndex
charBuffer
writeIndex

Returns

Definition at line 2929 of file TMP_Text.cs.

◆ ReplaceClosingStyleTag() [3/4]

bool TMPro.TMP_Text.ReplaceClosingStyleTag	(	ref char []	sourceText,
		int	srcIndex,
		ref int []	charBuffer,
		ref int	writeIndex
	)

inlineprivate

Method to handle inline replacement of style tag by closing style definition.

Parameters

sourceText
srcIndex
charBuffer
writeIndex

Returns

Definition at line 2998 of file TMP_Text.cs.

◆ ReplaceClosingStyleTag() [4/4]

bool TMPro.TMP_Text.ReplaceClosingStyleTag	(	ref StringBuilder	sourceText,
		int	srcIndex,
		ref int []	charBuffer,
		ref int	writeIndex
	)

inlineprivate

Method to handle inline replacement of style tag by closing style definition.

Parameters

sourceText
srcIndex
charBuffer
writeIndex

Returns

Definition at line 3066 of file TMP_Text.cs.

◆ ReplaceOpeningStyleTag() [1/4]

bool TMPro.TMP_Text.ReplaceOpeningStyleTag	(	ref string	sourceText,
		int	srcIndex,
		out int	srcOffset,
		ref int []	charBuffer,
		ref int	writeIndex
	)

inlineprivate

Method to handle inline replacement of style tag by opening style definition.

Parameters

sourceText
srcIndex
srcOffset
charBuffer
writeIndex

Returns

Definition at line 2577 of file TMP_Text.cs.

◆ ReplaceOpeningStyleTag() [2/4]

bool TMPro.TMP_Text.ReplaceOpeningStyleTag	(	ref int []	sourceText,
		int	srcIndex,
		out int	srcOffset,
		ref int []	charBuffer,
		ref int	writeIndex
	)

inlineprivate

Method to handle inline replacement of style tag by opening style definition.

Parameters

sourceText
srcIndex
srcOffset
charBuffer
writeIndex

Returns

Definition at line 2648 of file TMP_Text.cs.

◆ ReplaceOpeningStyleTag() [3/4]

bool TMPro.TMP_Text.ReplaceOpeningStyleTag	(	ref char []	sourceText,
		int	srcIndex,
		out int	srcOffset,
		ref int []	charBuffer,
		ref int	writeIndex
	)

inlineprivate

Method to handle inline replacement of style tag by opening style definition.

Parameters

sourceText
srcIndex
srcOffset
charBuffer
writeIndex

Returns

Definition at line 2719 of file TMP_Text.cs.

◆ ReplaceOpeningStyleTag() [4/4]

bool TMPro.TMP_Text.ReplaceOpeningStyleTag	(	ref StringBuilder	sourceText,
		int	srcIndex,
		out int	srcOffset,
		ref int []	charBuffer,
		ref int	writeIndex
	)

inlineprivate

Method to handle inline replacement of style tag by opening style definition.

Parameters

sourceText
srcIndex
srcOffset
charBuffer
writeIndex

Returns

Definition at line 2790 of file TMP_Text.cs.

◆ ReplaceTagWithCharacter()

void TMPro.TMP_Text.ReplaceTagWithCharacter	(	int []	chars,
		int	insertionIndex,
		int	tagLength,
		char	c
	)

inlineprotected

Replace a given number of characters (tag) in the array with a new character and shift subsequent characters in the array.

Parameters

chars	Array which contains the text.
insertionIndex	The index of where the new character will be inserted
tagLength	Length of the tag being replaced.
c	The replacement character.

Definition at line 5459 of file TMP_Text.cs.

◆ ResizeInternalArray< T >()

void TMPro.TMP_Text.ResizeInternalArray< T > ( ref T [] array )

inlineprivate

Definition at line 3310 of file TMP_Text.cs.

◆ ResizeLineExtents()

void TMPro.TMP_Text.ResizeLineExtents ( int size )

inlineprotected

Function to increase the size of the Line Extents Array.

Parameters

size

Definition at line 4505 of file TMP_Text.cs.

◆ RestoreWordWrappingState()

int TMPro.TMP_Text.RestoreWordWrappingState ( ref WordWrapState state )

inlineprotected

Restore the State of various variables used in the mesh creation loop.

Parameters

state

Returns

Definition at line 4682 of file TMP_Text.cs.

◆ SaveGlyphVertexInfo()

virtual void TMPro.TMP_Text.SaveGlyphVertexInfo	(	float	padding,
		float	style_padding,
		Color32	vertexColor
	)

inlineprotectedvirtual

Store vertex information for each character.

Parameters

style_padding	Style_padding.
vertexColor	Vertex color.

Definition at line 4763 of file TMP_Text.cs.

◆ SaveSpriteVertexInfo()

virtual void TMPro.TMP_Text.SaveSpriteVertexInfo ( Color32 vertexColor )

inlineprotectedvirtual

Store vertex information for each sprite.

Parameters

padding
style_padding
vertexColor

Definition at line 4886 of file TMP_Text.cs.

◆ SaveWordWrappingState()

void TMPro.TMP_Text.SaveWordWrappingState	(	ref WordWrapState	state,
		int	index,
		int	count
	)

inlineprotected

Function used in conjunction with GetTextInfo to figure out Array allocations.

Parameters

chars

Returns

Save the State of various variables used in the mesh creation loop in conjunction with Word Wrapping

Parameters

state
index
count

Definition at line 4604 of file TMP_Text.cs.

◆ SetActiveSubMeshes()

virtual void TMPro.TMP_Text.SetActiveSubMeshes ( bool state )

inlineprotectedvirtual

Method to Enable or Disable child SubMesh objects.

Parameters

state

Reimplemented in TMPro.TextMeshProUGUI, and TMPro.TextMeshPro.

Definition at line 5509 of file TMP_Text.cs.

◆ SetArraySizes()

virtual int TMPro.TMP_Text.SetArraySizes ( int [] chars )

inlineprotectedvirtual

Method used to determine the number of visible characters and required buffer allocations.

Parameters

chars

Returns

Reimplemented in TMPro.TextMeshProUGUI, and TMPro.TextMeshPro.

Definition at line 3398 of file TMP_Text.cs.

◆ SetCharArray() [1/3]

void TMPro.TMP_Text.SetCharArray ( char [] sourceText )

inline

Character array containing the text to be displayed.

Parameters

sourceText

Definition at line 1882 of file TMP_Text.cs.

◆ SetCharArray() [2/3]

void TMPro.TMP_Text.SetCharArray	(	char []	sourceText,
		int	start,
		int	length
	)

inline

Character array containing the text to be displayed.

Parameters

sourceText

Definition at line 1986 of file TMP_Text.cs.

◆ SetCharArray() [3/3]

void TMPro.TMP_Text.SetCharArray	(	int []	sourceText,
		int	start,
		int	length
	)

inline

Character array containing the text to be displayed.

Parameters

sourceText

Definition at line 2099 of file TMP_Text.cs.

◆ SetCulling()

virtual void TMPro.TMP_Text.SetCulling ( )

inlineprotectedvirtual

Set the culling mode on the material.

Reimplemented in TMPro.TextMeshProUGUI, and TMPro.TextMeshPro.

Definition at line 1527 of file TMP_Text.cs.

◆ SetFaceColor()

virtual void TMPro.TMP_Text.SetFaceColor ( Color32 color )

inlineprotectedvirtual

Function called internally to set the face color of the material. This will results in an instance of the material.

Parameters

color

Reimplemented in TMPro.TextMeshProUGUI, and TMPro.TextMeshPro.

Definition at line 1505 of file TMP_Text.cs.

◆ SetFontBaseMaterial()

virtual void TMPro.TMP_Text.SetFontBaseMaterial ( Material mat )

inlineprotectedvirtual

Function called internally when assigning a new base material.

Parameters

mat

Definition at line 1433 of file TMP_Text.cs.

◆ SetOutlineColor()

virtual void TMPro.TMP_Text.SetOutlineColor ( Color32 color )

inlineprotectedvirtual

Function called internally to set the outline color of the material. This will results in an instance of the material.

Parameters

color

Reimplemented in TMPro.TextMeshProUGUI, and TMPro.TextMeshPro.

Definition at line 1511 of file TMP_Text.cs.

◆ SetOutlineThickness()

virtual void TMPro.TMP_Text.SetOutlineThickness ( float thickness )

inlineprotectedvirtual

Function called internally to set the outline thickness property of the material. This will results in an instance of the material.

Parameters

thickness

Reimplemented in TMPro.TextMeshProUGUI, and TMPro.TextMeshPro.

Definition at line 1517 of file TMP_Text.cs.

◆ SetShaderDepth()

virtual void TMPro.TMP_Text.SetShaderDepth ( )

inlineprotectedvirtual

Set the Render Queue and ZTest mode on the current material

Reimplemented in TMPro.TextMeshProUGUI, and TMPro.TextMeshPro.

Definition at line 1522 of file TMP_Text.cs.

◆ SetSharedMaterial()

virtual void TMPro.TMP_Text.SetSharedMaterial ( Material mat )

inlineprotectedvirtual

Function called internally when a new shared material is assigned via the fontSharedMaterial property.

Parameters

mat

Reimplemented in TMPro.TextMeshProUGUI, and TMPro.TextMeshPro.

Definition at line 1422 of file TMP_Text.cs.

◆ SetSharedMaterials()

virtual void TMPro.TMP_Text.SetSharedMaterials ( Material [] materials )

inlineprotectedvirtual

Reimplemented in TMPro.TextMeshProUGUI, and TMPro.TextMeshPro.

Definition at line 1444 of file TMP_Text.cs.

◆ SetText() [1/6]

void TMPro.TMP_Text.SetText ( string text )

inline

Parameters

text

Definition at line 1709 of file TMP_Text.cs.

◆ SetText() [2/6]

void TMPro.TMP_Text.SetText	(	string	text,
		bool	syncTextInputBox
	)

inline

Parameters

text

Definition at line 1719 of file TMP_Text.cs.

◆ SetText() [3/6]

void TMPro.TMP_Text.SetText	(	string	text,
		float	arg0
	)

inline

Formatted string containing a pattern and a value representing the text to be rendered.

ex. TextMeshPro.SetText ("Number is {0:1}.", 5.56f);

Template Parameters

T

Parameters

text	String containing the pattern."</param> <param name="arg0">Value is a float.

Definition at line 1752 of file TMP_Text.cs.

◆ SetText() [4/6]

void TMPro.TMP_Text.SetText	(	string	text,
		float	arg0,
		float	arg1
	)

inline

Formatted string containing a pattern and a value representing the text to be rendered.

ex. TextMeshPro.SetText ("First number is {0} and second is {1:2}.", 10, 5.756f);

Template Parameters

T

Parameters

text	String containing the pattern."</param> <param name="arg0">Value is a float.</param> <param name="arg1">Value is a float.

Definition at line 1765 of file TMP_Text.cs.

◆ SetText() [5/6]

void TMPro.TMP_Text.SetText	(	string	text,
		float	arg0,
		float	arg1,
		float	arg2
	)

inline

Formatted string containing a pattern and a value representing the text to be rendered.

ex. TextMeshPro.SetText ("A = {0}, B = {1} and C = {2}.", 2, 5, 7);

Template Parameters

T

Parameters

text	String containing the pattern."</param> <param name="arg0">Value is a float.</param> <param name="arg1">Value is a float.</param> <param name="arg2">Value is a float.

Definition at line 1779 of file TMP_Text.cs.

◆ SetText() [6/6]

void TMPro.TMP_Text.SetText ( StringBuilder text )

inline

Set the text using a StringBuilder.

Using a StringBuilder instead of concatenating strings prevents memory pollution with temporary objects.

Parameters

text	StringBuilder with text to display.

Definition at line 1858 of file TMP_Text.cs.

◆ SetTextArrayToCharArray()

void TMPro.TMP_Text.SetTextArrayToCharArray	(	char []	sourceText,
		ref int []	charBuffer
	)

inlineprotected

Copies Content of formatted SetText() to charBuffer.

Parameters

sourceText
charBuffer

Definition at line 2211 of file TMP_Text.cs.

◆ SetTextInternal()

internal void TMPro.TMP_Text.SetTextInternal ( string text )

inlineprivate

Internal function used by the Text Input Field to populate TMP_TextInfo data.

Definition at line 1575 of file TMP_Text.cs.

◆ SetTextSortingOrder() [1/2]

void TMPro.TMP_Text.SetTextSortingOrder ( VertexSortingOrder order )

inlineprotected

Function to control the sorting of the geometry of the text object.

Definition at line 1487 of file TMP_Text.cs.

◆ SetTextSortingOrder() [2/2]

void TMPro.TMP_Text.SetTextSortingOrder ( int [] order )

inlineprotected

Function to sort the geometry of the text object in accordance to the provided order.

Parameters

order

Definition at line 1496 of file TMP_Text.cs.

◆ SetVertices()

virtual void TMPro.TMP_Text.SetVertices ( Vector3 [] vertices )

inlinevirtual

Function to push a new set of vertices to the mesh.

Parameters

vertices

Definition at line 1615 of file TMP_Text.cs.

◆ StringBuilderToIntArray()

void TMPro.TMP_Text.StringBuilderToIntArray	(	StringBuilder	sourceText,
		ref int []	charBuffer
	)

inlineprotected

Copy contents of StringBuilder into int array.

Parameters

sourceText	Text to copy.
charBuffer	Array to store contents.

Definition at line 2431 of file TMP_Text.cs.

◆ StringToCharArray()

void TMPro.TMP_Text.StringToCharArray	(	string	sourceText,
		ref int []	charBuffer
	)

inlineprotected

Method to store the content of a string into an integer array.

Parameters

sourceText
charBuffer

Definition at line 2286 of file TMP_Text.cs.

◆ UpdateGeometry()

virtual void TMPro.TMP_Text.UpdateGeometry	(	Mesh	mesh,
		int	index
	)

inlinevirtual

Function to force the regeneration of the text object.

Parameters

flags Flags to control which portions of the geometry gets uploaded.

Function to update the geometry of the main and sub text objects.

Parameters

mesh
index

Reimplemented in TMPro.TextMeshProUGUI, and TMPro.TextMeshPro.

Definition at line 1596 of file TMP_Text.cs.

◆ UpdateMeshPadding()

virtual void TMPro.TMP_Text.UpdateMeshPadding ( )

inlinevirtual

Function to be used to force recomputing of character padding when Shader / Material properties have been changed via script.

Reimplemented in TMPro.TextMeshProUGUI, and TMPro.TextMeshPro.

Definition at line 1621 of file TMP_Text.cs.

◆ UpdateVertexData() [1/2]

virtual void TMPro.TMP_Text.UpdateVertexData ( TMP_VertexDataUpdateFlags flags )

inlinevirtual

Function to push the updated vertex data into the mesh and renderer.

Reimplemented in TMPro.TextMeshProUGUI, and TMPro.TextMeshPro.

Definition at line 1602 of file TMP_Text.cs.

◆ UpdateVertexData() [2/2]

virtual void TMPro.TMP_Text.UpdateVertexData ( )

inlinevirtual

Function to push the updated vertex data into the mesh and renderer.

Reimplemented in TMPro.TextMeshProUGUI, and TMPro.TextMeshPro.

Definition at line 1608 of file TMP_Text.cs.

◆ ValidateHtmlTag()

bool TMPro.TMP_Text.ValidateHtmlTag	(	int []	chars,
		int	startIndex,
		out int	endIndex
	)

inlineprotected

Function to identify and validate the rich tag. Returns the position of the > if the tag was valid.

Parameters

chars
startIndex
endIndex

Returns

Definition at line 5979 of file TMP_Text.cs.

Property Documentation

◆ alignment

TextAlignmentOptions TMPro.TMP_Text.alignment

getset

Text alignment options

Definition at line 507 of file TMP_Text.cs.

◆ alpha

float TMPro.TMP_Text.alpha

getset

Sets the vertex color alpha value.

Definition at line 247 of file TMP_Text.cs.

◆ autoSizeTextContainer

virtual bool TMPro.TMP_Text.autoSizeTextContainer

getset

Enables control over setting the size of the text container to match the text object.

Definition at line 1078 of file TMP_Text.cs.

◆ bounds

Bounds TMPro.TMP_Text.bounds

get

Returns the bounds of the mesh of the text object in world space.

Definition at line 1110 of file TMP_Text.cs.

◆ characterSpacing

float TMPro.TMP_Text.characterSpacing

getset

Use the extents of the text geometry for alignment instead of font metrics.

The amount of additional spacing between characters.

Definition at line 536 of file TMP_Text.cs.

◆ characterWidthAdjustment

float TMPro.TMP_Text.characterWidthAdjustment

getset

Percentage the width of characters can be adjusted before text auto-sizing begins to reduce the point size.

Definition at line 598 of file TMP_Text.cs.

◆ color

override Color TMPro.TMP_Text.color

getset

This is the default vertex color assigned to each vertices. Color tags will override vertex colors unless the overrideColorTags is set.

Definition at line 228 of file TMP_Text.cs.

◆ colorGradient

VertexGradient TMPro.TMP_Text.colorGradient

getset

Sets the vertex colors for each of the 4 vertices of the character quads.

The color gradient.

Definition at line 273 of file TMP_Text.cs.

◆ colorGradientPreset

TMP_ColorGradient TMPro.TMP_Text.colorGradientPreset

getset

Set the vertex colors of the 4 vertices of each character quads.

Definition at line 285 of file TMP_Text.cs.

◆ enableAutoSizing

bool TMPro.TMP_Text.enableAutoSizing

getset

Enable text auto-sizing

Definition at line 449 of file TMP_Text.cs.

◆ enableCulling

bool TMPro.TMP_Text.enableCulling

getset

Sets the culling on the shaders. Note changing this value will result in an instance of the material.

Definition at line 822 of file TMP_Text.cs.

◆ enableKerning

bool TMPro.TMP_Text.enableKerning

getset

Determines if kerning is enabled or disabled.

Definition at line 749 of file TMP_Text.cs.

◆ enableVertexGradient

bool TMPro.TMP_Text.enableVertexGradient

getset

Determines if Vertex Color Gradient should be used

true if enable vertex gradient; otherwise, false.

Definition at line 258 of file TMP_Text.cs.

◆ enableWordWrapping

bool TMPro.TMP_Text.enableWordWrapping

getset

Controls whether or not word wrapping is applied. When disabled, the text will be displayed on a single line.

Definition at line 611 of file TMP_Text.cs.

◆ extraPadding

bool TMPro.TMP_Text.extraPadding

getset

Adds extra padding around each character. This may be necessary when the displayed text is very small to prevent clipping.

Definition at line 761 of file TMP_Text.cs.

◆ faceColor

Color32 TMPro.TMP_Text.faceColor

getset

Sets the color of the _FaceColor property of the assigned material. Changing face color will result in an instance of the material.

Definition at line 335 of file TMP_Text.cs.

◆ firstOverflowCharacterIndex

int TMPro.TMP_Text.firstOverflowCharacterIndex

get

The first character which exceeds the vertical bounds of its text container.

Definition at line 671 of file TMP_Text.cs.

◆ firstVisibleCharacter

int TMPro.TMP_Text.firstVisibleCharacter

getset

The first character which should be made visible in conjunction with the Text Overflow Linked mode.

Definition at line 929 of file TMP_Text.cs.

◆ flexibleHeight

float TMPro.TMP_Text.flexibleHeight

get

Definition at line 1214 of file TMP_Text.cs.

◆ flexibleWidth

float TMPro.TMP_Text.flexibleWidth

get

Definition at line 1220 of file TMP_Text.cs.

◆ font

TMP_FontAsset TMPro.TMP_Text.font

getset

The Font Asset to be assigned to this text object.

Definition at line 141 of file TMP_Text.cs.

◆ fontMaterial

Material TMPro.TMP_Text.fontMaterial

getset

The material to be assigned to this text object. An instance of the material will be assigned to the object's renderer.

Definition at line 186 of file TMP_Text.cs.

◆ fontMaterials

virtual Material [] TMPro.TMP_Text.fontMaterials

getset

The materials to be assigned to this text object. An instance of the materials will be assigned.

Definition at line 213 of file TMP_Text.cs.

◆ fontScale

float TMPro.TMP_Text.fontScale

get

The scale of the current text.

Definition at line 406 of file TMP_Text.cs.

◆ fontSharedMaterial

virtual Material TMPro.TMP_Text.fontSharedMaterial

getset

The material to be assigned to this text object.

Definition at line 155 of file TMP_Text.cs.

◆ fontSharedMaterials

virtual Material [] TMPro.TMP_Text.fontSharedMaterials

getset

An array containing the materials used by the text object.

Definition at line 174 of file TMP_Text.cs.

◆ fontSize

float TMPro.TMP_Text.fontSize

getset

The point size of the font.

Definition at line 390 of file TMP_Text.cs.

◆ fontSizeMax

float TMPro.TMP_Text.fontSizeMax

getset

Maximum point size of the font when text auto-sizing is enabled.

Definition at line 475 of file TMP_Text.cs.

◆ fontSizeMin

float TMPro.TMP_Text.fontSizeMin

getset

Minimum point size of the font when text auto-sizing is enabled.

Definition at line 463 of file TMP_Text.cs.

◆ fontStyle

FontStyles TMPro.TMP_Text.fontStyle

getset

The style of the text

Definition at line 487 of file TMP_Text.cs.

◆ fontWeight

int TMPro.TMP_Text.fontWeight

getset

Control the weight of the font if an alternative font asset is assigned for the given weight in the font asset editor.

Definition at line 415 of file TMP_Text.cs.

◆ geometrySortingOrder

VertexSortingOrder TMPro.TMP_Text.geometrySortingOrder

getset

Determines the sorting order of the geometry of the text object.

Definition at line 916 of file TMP_Text.cs.

◆ havePropertiesChanged

bool TMPro.TMP_Text.havePropertiesChanged

getset

Property tracking if any of the text properties have changed. Flag is set before the text is regenerated.

Definition at line 1024 of file TMP_Text.cs.

◆ horizontalMapping

TextureMappingOptions TMPro.TMP_Text.horizontalMapping

getset

Controls how the face and outline textures will be applied to the text object.

Definition at line 857 of file TMP_Text.cs.

◆ ignoreRectMaskCulling

bool TMPro.TMP_Text.ignoreRectMaskCulling

getset

Controls whether or not the text object will be culled when using a 2D Rect Mask.

Definition at line 833 of file TMP_Text.cs.

◆ ignoreVisibility

bool TMPro.TMP_Text.ignoreVisibility

getset

Forces objects that are not visible to get refreshed.

Definition at line 845 of file TMP_Text.cs.

◆ isLinkedTextComponent

bool TMPro.TMP_Text.isLinkedTextComponent

getset

Indicates whether this text component is linked to another.

Definition at line 717 of file TMP_Text.cs.

◆ isOrthographic

bool TMPro.TMP_Text.isOrthographic

getset

Sets Perspective Correction to Zero for Orthographic Camera mode & 0.875f for Perspective Camera mode.

Definition at line 810 of file TMP_Text.cs.

◆ isOverlay

bool TMPro.TMP_Text.isOverlay

getset

Sets the RenderQueue along with Ztest to force the text to be drawn last and on top of scene elements.

Definition at line 799 of file TMP_Text.cs.

◆ isRightToLeftText

bool TMPro.TMP_Text.isRightToLeftText

getset

Definition at line 129 of file TMP_Text.cs.

◆ isTextOverflowing

bool TMPro.TMP_Text.isTextOverflowing

get

Indicates if the text exceeds the vertical bounds of its text container.

Definition at line 662 of file TMP_Text.cs.

◆ isTextTruncated

bool TMPro.TMP_Text.isTextTruncated

get

Property indicating whether the text is Truncated or using Ellipsis.

Definition at line 740 of file TMP_Text.cs.

◆ isUsingBold

bool TMPro.TMP_Text.isUsingBold

get

Property used in conjunction with padding calculation for the geometry.

Definition at line 499 of file TMP_Text.cs.

◆ isUsingLegacyAnimationComponent

bool TMPro.TMP_Text.isUsingLegacyAnimationComponent

getset

Property to handle legacy animation component.

Definition at line 1036 of file TMP_Text.cs.

◆ isVolumetricText

bool TMPro.TMP_Text.isVolumetricText

getset

Determines if the geometry of the characters will be quads or volumetric (cubes).

Definition at line 1099 of file TMP_Text.cs.

◆ layoutElement

LayoutElement TMPro.TMP_Text.layoutElement

getprotected

Definition at line 1251 of file TMP_Text.cs.

◆ layoutPriority

int TMPro.TMP_Text.layoutPriority

get

Definition at line 1298 of file TMP_Text.cs.

◆ lineSpacing

float TMPro.TMP_Text.lineSpacing

getset

The amount of additional spacing to add between each lines of text.

Definition at line 560 of file TMP_Text.cs.

◆ lineSpacingAdjustment

float TMPro.TMP_Text.lineSpacingAdjustment

getset

The amount of potential line spacing adjustment before text auto sizing kicks in.

Definition at line 574 of file TMP_Text.cs.

◆ linkedTextComponent

TMP_Text TMPro.TMP_Text.linkedTextComponent

getset

The linked text component used for flowing the text from one text component to another.

Definition at line 682 of file TMP_Text.cs.

◆ mappingUvLineOffset

float TMPro.TMP_Text.mappingUvLineOffset

getset

Controls the UV Offset for the various texture mapping mode on the text object.

Controls the horizontal offset of the UV of the texture mapping mode for each line of the text object.

Definition at line 893 of file TMP_Text.cs.

◆ margin

virtual Vector4 TMPro.TMP_Text.margin

getset

The margins of the text object.

Definition at line 997 of file TMP_Text.cs.

◆ maxHeight

float TMPro.TMP_Text.maxHeight

get

Definition at line 1244 of file TMP_Text.cs.

◆ maxVisibleCharacters

int TMPro.TMP_Text.maxVisibleCharacters

getset

Allows to control how many characters are visible from the input.

Definition at line 940 of file TMP_Text.cs.

◆ maxVisibleLines

int TMPro.TMP_Text.maxVisibleLines

getset

Allows control over how many lines of text are displayed.

Definition at line 962 of file TMP_Text.cs.

◆ maxVisibleWords

int TMPro.TMP_Text.maxVisibleWords

getset

Allows to control how many words are visible from the input.

Definition at line 951 of file TMP_Text.cs.

◆ maxWidth

float TMPro.TMP_Text.maxWidth

get

Definition at line 1238 of file TMP_Text.cs.

◆ mesh

virtual Mesh TMPro.TMP_Text.mesh

get

The mesh used by the font asset and material assigned to the text object.

Definition at line 1089 of file TMP_Text.cs.

◆ minHeight

float TMPro.TMP_Text.minHeight

get

Definition at line 1232 of file TMP_Text.cs.

◆ minWidth

float TMPro.TMP_Text.minWidth

get

Definition at line 1226 of file TMP_Text.cs.

◆ outlineColor

Color32 TMPro.TMP_Text.outlineColor

getset

Sets the color of the _OutlineColor property of the assigned material. Changing outline color will result in an instance of the material.

Definition at line 354 of file TMP_Text.cs.

◆ outlineWidth

float TMPro.TMP_Text.outlineWidth

getset

Sets the thickness of the outline of the font. Setting this value will result in an instance of the material.

Definition at line 373 of file TMP_Text.cs.

◆ overflowMode

TextOverflowModes TMPro.TMP_Text.overflowMode

getset

Controls the Text Overflow Mode

Definition at line 650 of file TMP_Text.cs.

◆ overrideColorTags

bool TMPro.TMP_Text.overrideColorTags

getset

This overrides the color tags forcing the vertex colors to be the default font color.

Definition at line 323 of file TMP_Text.cs.

◆ pageToDisplay

int TMPro.TMP_Text.pageToDisplay

getset

Controls which page of text is shown

Definition at line 985 of file TMP_Text.cs.

◆ paragraphSpacing

float TMPro.TMP_Text.paragraphSpacing

getset

The amount of additional spacing to add between each lines of text.

Definition at line 586 of file TMP_Text.cs.

◆ parseCtrlCharacters

bool TMPro.TMP_Text.parseCtrlCharacters

getset

Enables or Disables parsing of CTRL characters in input text.

Definition at line 787 of file TMP_Text.cs.

◆ pixelsPerUnit

float TMPro.TMP_Text.pixelsPerUnit

get

Definition at line 428 of file TMP_Text.cs.

◆ preferredHeight

virtual float TMPro.TMP_Text.preferredHeight

get

Computed preferred height of the text object.

Definition at line 1275 of file TMP_Text.cs.

◆ preferredWidth

virtual float TMPro.TMP_Text.preferredWidth

get

Computed preferred width of the text object.

Definition at line 1267 of file TMP_Text.cs.

◆ rectTransform

new RectTransform TMPro.TMP_Text.rectTransform

get

Returns are reference to the RectTransform

Definition at line 1063 of file TMP_Text.cs.

◆ renderedHeight

virtual float TMPro.TMP_Text.renderedHeight

get

Compute the rendered height of the text object.

Definition at line 1292 of file TMP_Text.cs.

◆ renderedWidth

virtual float TMPro.TMP_Text.renderedWidth

get

Compute the rendered width of the text object.

Definition at line 1286 of file TMP_Text.cs.

◆ renderMode

TextRenderFlags TMPro.TMP_Text.renderMode

getset

Determines if the Mesh will be rendered.

Definition at line 905 of file TMP_Text.cs.

◆ richText

bool TMPro.TMP_Text.richText

getset

Enables or Disables Rich Text Tags

Definition at line 775 of file TMP_Text.cs.

◆ spriteAnimator

TMP_SpriteAnimator TMPro.TMP_Text.spriteAnimator

getprotected

Component used to control wrapping of text following some arbitrary shape.

Component used to control and animate sprites in the text object.

Definition at line 1177 of file TMP_Text.cs.

◆ spriteAsset

TMP_SpriteAsset TMPro.TMP_Text.spriteAsset

getset

Default Sprite Asset used by the text object.

Definition at line 297 of file TMP_Text.cs.

◆ text

string TMPro.TMP_Text.text

getset

A string containing the text to be displayed.

Definition at line 116 of file TMP_Text.cs.

◆ textBounds

Bounds TMPro.TMP_Text.textBounds

get

Returns the bounds of the text of the text object.

Definition at line 1123 of file TMP_Text.cs.

◆ textInfo

TMP_TextInfo TMPro.TMP_Text.textInfo

get

Returns data about the text object which includes information about each character, word, line, link, etc.

Definition at line 1014 of file TMP_Text.cs.

◆ tintAllSprites

bool TMPro.TMP_Text.tintAllSprites

getset

Determines whether or not the sprite color is multiplies by the vertex color of the text.

Definition at line 309 of file TMP_Text.cs.

◆ transform

new Transform TMPro.TMP_Text.transform

get

Returns are reference to the Transform

Definition at line 1048 of file TMP_Text.cs.

◆ useMaxVisibleDescender

bool TMPro.TMP_Text.useMaxVisibleDescender

getset

Determines if the text's vertical alignment will be adjusted based on visible descender of the text.

Definition at line 973 of file TMP_Text.cs.

◆ verticalMapping

TextureMappingOptions TMPro.TMP_Text.verticalMapping

getset

Controls how the face and outline textures will be applied to the text object.

Definition at line 869 of file TMP_Text.cs.

◆ wordSpacing

float TMPro.TMP_Text.wordSpacing

getset

The amount of additional spacing between words.

Definition at line 549 of file TMP_Text.cs.

◆ wordWrappingRatios

float TMPro.TMP_Text.wordWrappingRatios

getset

Controls the blending between using character and word spacing to fill-in the space for justified text.

Definition at line 625 of file TMP_Text.cs.

The documentation for this class was generated from the following file:

Library/PackageCache/com.unity.textmeshpro@1.3.0/Scripts/Runtime/TMP_Text.cs

Public Member Functions

Protected Types

Protected Member Functions

Protected Attributes

Static Protected Attributes

Properties

Private Member Functions

Private Attributes

Detailed Description

Member Function Documentation

◆ AddFloatToCharArray()

◆ AddIntToCharArray()

◆ AdjustLineOffset()

◆ CalculatePreferredValues()

◆ ClearMesh() [1/2]

◆ ClearMesh() [2/2]

◆ ClearSubMeshObjects()

◆ ComputeMarginSize()

◆ ConvertToFloat() [1/2]

◆ ConvertToFloat() [2/2]

◆ CreateMaterialInstance()

◆ CrossFadeAlpha()

◆ CrossFadeColor()

◆ DrawUnderlineMesh()

◆ FillCharacterVertexBuffers()

◆ FillSpriteVertexBuffers()

◆ ForceMeshUpdate() [1/2]

◆ ForceMeshUpdate() [2/2]

◆ GenerateTextMesh()

◆ GetAttributeParameters()

◆ GetCompoundBounds()

◆ GetFontAssetForWeight()

◆ GetMaterial()

◆ GetMaterials()

◆ GetPaddingForMaterial() [1/2]

◆ GetPaddingForMaterial() [2/2]

◆ GetParsedText()

◆ GetPreferredHeight() [1/2]

◆ GetPreferredHeight() [2/2]

◆ GetPreferredValues() [1/4]

◆ GetPreferredValues() [2/4]

◆ GetPreferredValues() [3/4]

◆ GetPreferredValues() [4/4]

◆ GetPreferredWidth() [1/2]

◆ GetPreferredWidth() [2/2]

◆ GetRenderedHeight() [1/2]

◆ GetRenderedHeight() [2/2]

◆ GetRenderedValues() [1/2]

◆ GetRenderedValues() [2/2]

◆ GetRenderedWidth() [1/2]

◆ GetRenderedWidth() [2/2]

◆ GetSharedMaterials()

◆ GetSpecialCharacters()

◆ GetTagHashCode() [1/4]

◆ GetTagHashCode() [2/4]

◆ GetTagHashCode() [3/4]

◆ GetTagHashCode() [4/4]

◆ GetTextBounds() [1/2]

◆ GetTextBounds() [2/2]

◆ GetTextContainerLocalCorners()

◆ GetTextInfo()

◆ GetUTF16() [1/2]

◆ GetUTF16() [2/2]

◆ GetUTF32() [1/2]

◆ GetUTF32() [2/2]

◆ HexCharsToColor() [1/2]

◆ HexCharsToColor() [2/2]

◆ HexToInt()

◆ InternalCrossFadeAlpha()

◆ InternalCrossFadeColor()

◆ IsTagName() [1/4]

◆ IsTagName() [2/4]

◆ IsTagName() [3/4]

◆ IsTagName() [4/4]

◆ LoadDefaultSettings()

◆ LoadFontAsset()

◆ PackUV() [1/2]

◆ PackUV() [2/2]

◆ ParseInputText()

◆ ReplaceClosingStyleTag() [1/4]
