vtk3DSOurImporter.cpp File Reference

#include <vtkActor.h>
#include <vtkByteSwap.h>
#include <vtkCamera.h>
#include <vtkCellArray.h>
#include <vtkLight.h>
#include <vtkPolyDataMapper.h>
#include <vtkPolyDataNormals.h>
#include <vtkProperty.h>
#include <vtkRenderer.h>
#include <vtkStripper.h>
#include <vtkObjectFactory.h>
#include "vtk3DSOurImporter.h"

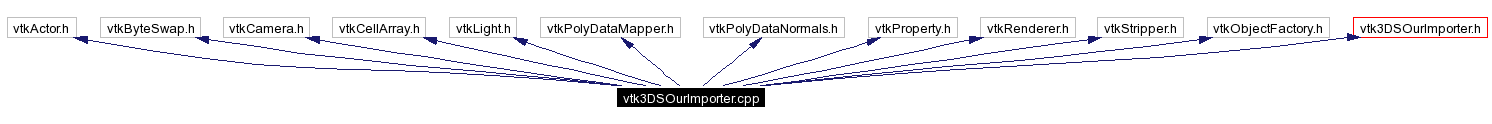

Include dependency graph for vtk3DSOurImporter.cpp:

Include dependency graph

Go to the source code of this file.

Functions

void cleanup_name (char *)
void list_insert (vtk3DSList **root, vtk3DSList *new_node)
void * list_find (vtk3DSList **root, const char *name)
void list_kill (vtk3DSList **root)
vtk3DSMatProp * create_mprop (void)
vtk3DSMesh * create_mesh (char *name, int vertices, int faces)
int parse_3ds_file (vtk3DSOurImporter *importer)
void parse_3ds (vtk3DSOurImporter *importer, vtk3DSChunk *mainchunk)
void parse_mdata (vtk3DSOurImporter *importer, vtk3DSChunk *mainchunk)
void parse_fog (vtk3DSOurImporter *importer, vtk3DSChunk *mainchunk)
void parse_fog_bgnd (vtk3DSOurImporter *importer)
void parse_mat_entry (vtk3DSOurImporter *importer, vtk3DSChunk *mainchunk)
char * parse_mapname (vtk3DSOurImporter *importer, vtk3DSChunk *mainchunk)
void parse_named_object (vtk3DSOurImporter *importer, vtk3DSChunk *mainchunk)
void parse_n_tri_object (vtk3DSOurImporter *importer, vtk3DSChunk *mainchunk)
void parse_point_array (vtk3DSOurImporter *importer, vtk3DSMesh *mesh)
void parse_face_array (vtk3DSOurImporter *importer, vtk3DSMesh *mesh, vtk3DSChunk *mainchunk)
void parse_msh_mat_group (vtk3DSOurImporter *importer, vtk3DSMesh *mesh)
void parse_smooth_group (vtk3DSOurImporter *importer)
void parse_mesh_matrix (vtk3DSOurImporter *importer, vtk3DSMesh *mesh)
void parse_n_direct_light (vtk3DSOurImporter *importer, vtk3DSChunk *mainchunk)
void parse_dl_spotlight (vtk3DSOurImporter *importer)
void parse_n_camera (vtk3DSOurImporter *importer)
void parse_colour (vtk3DSOurImporter *importer, vtk3DSColour *colour)
void parse_colour_f (vtk3DSOurImporter *importer, vtk3DSColour *colour)
void parse_colour_24 (vtk3DSOurImporter *importer, vtk3DSColour_24 *colour)
float parse_percentage (vtk3DSOurImporter *importer)
short parse_int_percentage (vtk3DSOurImporter *importer)
float parse_float_percentage (vtk3DSOurImporter *importer)
vtk3DSMaterial * update_materials (vtk3DSOurImporter *importer, const char *new_material, int ext)
void start_chunk (vtk3DSOurImporter *importer, vtk3DSChunk *chunk)
void end_chunk (vtk3DSOurImporter *importer, vtk3DSChunk *chunk)
byte read_byte (vtk3DSOurImporter *importer)
word read_word (vtk3DSOurImporter *importer)
dword read_dword (vtk3DSOurImporter *importer)
float read_float (vtk3DSOurImporter *importer)
void read_point (vtk3DSOurImporter *importer, vtk3DSVector v)
char * read_string (vtk3DSOurImporter *importer)
void parse_fog_bgnd (vtk3DSOurImporter *vtkNotUsed(importer))
void parse_smooth_group (vtk3DSOurImporter *vtkNotUsed(importer))
void parse_mesh_matrix (vtk3DSOurImporter *vtkNotUsed(importer), vtk3DSMesh *vtkNotUsed(mesh))

Variables

vtk3DSColour Black = {0.0, 0.0, 0.0}
char obj_name [80] = ""
vtk3DSColour fog_colour = {0.0, 0.0, 0.0}
vtk3DSColour col = {0.0, 0.0, 0.0}
vtk3DSColour global_amb = {0.1, 0.1, 0.1}
vtk3DSVector pos = {0.0, 0.0, 0.0}
vtk3DSVector target = {0.0, 0.0, 0.0}
float hotspot = -1
float falloff = -1
vtk3DSMatProp DefaultMaterial

Function Documentation

void cleanup_name (  char *   )  [static]


Definition at line 1183 of file vtk3DSOurImporter.cpp.

Referenced by parse_mat_entry(), parse_msh_mat_group(), and parse_named_object().

01184 {
01185   char *tmp = (char *) malloc (strlen(name)+2);
01186   int  i;
01187
01188     /* Remove any leading blanks or quotes */
01189   i = 0;
01190   while ((name[i] == ' ' || name[i] == '"') && name[i] != '\0')
01191     {
01192     i++;
01193     }
01194   strcpy (tmp, &name[i]);
01195
01196     /* Remove any trailing blanks or quotes */
01197   for (i = strlen(tmp)-1; i >= 0; i--)
01198     {
01199     if (isprint(tmp[i]) && !isspace(tmp[i]) && tmp[i] != '"')
01200       {
01201       break;
01202       }
01203     else
01204       {
01205       tmp[i] = '\0';
01206       }
01207     }
01208
01209     strcpy (name, tmp);
01210
01211     /* Prefix the letter 'N' to materials that begin with a digit */
01212     if (!isdigit (name[0]))
01213       {
01214       strcpy (tmp, name);
01215       }
01216     else
01217       {
01218       tmp[0] = 'N';
01219       strcpy (&tmp[1], name);
01220       }
01221
01222     /* Replace all illegal charaters in name with underscores */
01223     for (i = 0; tmp[i] != '\0'; i++)
01224       {
01225       if (!isalnum(tmp[i]))
01226         {
01227         tmp[i] = '_';
01228         }
01229       }
01230
01231     strcpy (name, tmp);
01232
01233     free (tmp);
01234 }

vtk3DSMesh * create_mesh (  char *  name,
int  vertices,
int  faces
)  [static]


Definition at line 481 of file vtk3DSOurImporter.cpp.

Referenced by parse_n_tri_object().

00482 {
00483   vtk3DSMesh *new_mesh;
00484
00485   new_mesh = (vtk3DSMesh *) malloc (sizeof(*new_mesh));
00486   strcpy (new_mesh->name, name);
00487
00488   new_mesh->vertices = vertices;
00489
00490   if (vertices <= 0)
00491     {
00492     new_mesh->vertex = NULL;
00493     }
00494   else
00495     {
00496     new_mesh->vertex = (vtk3DSVector *) malloc(vertices * sizeof(*new_mesh->vertex));
00497     }
00498
00499   new_mesh->faces = faces;
00500
00501   if (faces <= 0)
00502     {
00503     new_mesh->face = NULL;
00504     new_mesh->mtl = NULL;
00505     }
00506   else
00507     {
00508     new_mesh->face = (vtk3DSFace *) malloc (faces * sizeof(*new_mesh->face));
00509     new_mesh->mtl = (vtk3DSMaterial **) malloc (faces * sizeof(*new_mesh->mtl));
00510     }
00511
00512   new_mesh->hidden = 0;
00513   new_mesh->shadow = 1;
00514
00515   new_mesh->anActor = NULL;
00516   new_mesh->aMapper = NULL;
00517   new_mesh->aNormals = NULL;
00518   new_mesh->aStripper = NULL;
00519   new_mesh->aPoints = NULL;
00520   new_mesh->aCellArray = NULL;
00521   new_mesh->aPolyData = NULL;
00522   return new_mesh;
00523 }

vtk3DSMatProp * create_mprop (  void   )  [static]


Definition at line 455 of file vtk3DSOurImporter.cpp.

References Black.

Referenced by parse_mat_entry().

00456 {
00457   vtk3DSMatProp *new_mprop;
00458
00459   new_mprop = (vtk3DSMatProp *) malloc (sizeof(*new_mprop));
00460   strcpy (new_mprop->name, "");
00461   new_mprop->ambient = Black;
00462   new_mprop->diffuse = Black;
00463   new_mprop->specular = Black;
00464   new_mprop->shininess = 0.0;
00465   new_mprop->transparency = 0.0;
00466   new_mprop->reflection = 0.0;
00467   new_mprop->self_illum = 0;
00468
00469   strcpy (new_mprop->tex_map, "");
00470   new_mprop->tex_strength = 0.0;
00471
00472   strcpy (new_mprop->bump_map, "");
00473   new_mprop->bump_strength = 0.0;
00474
00475   new_mprop->aProperty = vtkProperty::New ();
00476   return new_mprop;
00477 }

void end_chunk (  vtk3DSOurImporter *  importer,
vtk3DSChunk *  chunk
)  [static]


Definition at line 1101 of file vtk3DSOurImporter.cpp.

References vtk3DSOurImporter::GetFileFD().

Referenced by parse_3ds(), parse_3ds_file(), parse_colour(), parse_face_array(), parse_fog(), parse_mapname(), parse_mat_entry(), parse_mdata(), parse_n_direct_light(), parse_n_tri_object(), parse_named_object(), and parse_percentage().

01102 {
01103   fseek (importer->GetFileFD(), chunk->end, 0);
01104 }

Here is the call graph for this function:

void * list_find (  vtk3DSList **  root,
const char *  name
)  [static]


Definition at line 411 of file vtk3DSOurImporter.cpp.

00412 {
00413   vtk3DSList *p;
00414   for (p = *root; p != (vtk3DSList *) NULL; p = (vtk3DSList *) p->next)
00415     {
00416     if (strcmp (p->name, name) == 0)
00417       {
00418       break;
00419       }
00420     }
00421   return (void *)p;
00422 }

void list_insert (  vtk3DSList **  root,
vtk3DSList *  new_node
)  [static]


Definition at line 403 of file vtk3DSOurImporter.cpp.

00404 {
00405   new_node->next = *root;
00406   *root = new_node;
00407 }

void list_kill (  vtk3DSList **  root  )  [static]


Definition at line 425 of file vtk3DSOurImporter.cpp.

00426 {
00427   vtk3DSList *temp;
00428
00429   while (*root != (vtk3DSList *) NULL)
00430     {
00431     temp = *root;
00432     *root = (vtk3DSList *) (*root)->next;
00433     free (temp);
00434     }
00435 }

void parse_3ds (  vtk3DSOurImporter *  importer,
vtk3DSChunk *  mainchunk
)  [static]


Definition at line 546 of file vtk3DSOurImporter.cpp.

References end_chunk(), parse_mdata(), and start_chunk().

Referenced by parse_3ds_file().

00547 {
00548   vtk3DSChunk chunk;
00549
00550   do
00551     {
00552     start_chunk (importer, &chunk);
00553
00554     if (chunk.end <= mainchunk->end)
00555       {
00556       switch (chunk.tag)
00557         {
00558         case 0x3D3D: parse_mdata (importer, &chunk);
00559           break;
00560         }
00561       }
00562     end_chunk (importer, &chunk);
00563     } while (chunk.end <= mainchunk->end);
00564 }

Here is the call graph for this function:

int parse_3ds_file (  vtk3DSOurImporter *  importer  )  [static]


Definition at line 526 of file vtk3DSOurImporter.cpp.

References end_chunk(), parse_3ds(), and start_chunk().

Referenced by vtk3DSOurImporter::Read3DS().

00527 {
00528   vtk3DSChunk chunk;
00529
00530   start_chunk(importer, &chunk);
00531
00532   if (chunk.tag == 0x4D4D)
00533     {
00534     parse_3ds (importer, &chunk);
00535     }
00536   else
00537     {
00538     vtkGenericWarningMacro(<< "Error: Input file is not .3DS format\n");
00539     return 0;
00540     }
00541
00542   end_chunk (importer, &chunk);
00543   return 1;
00544 }

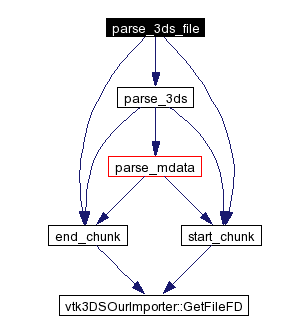

Here is the call graph for this function:

void parse_colour (  vtk3DSOurImporter *  importer,
vtk3DSColour *  colour
)  [static]


Definition at line 1007 of file vtk3DSOurImporter.cpp.

References end_chunk(), parse_colour_24(), parse_colour_f(), and start_chunk().

Referenced by parse_fog(), parse_mat_entry(), parse_mdata(), and parse_n_direct_light().

01008 {
01009   vtk3DSChunk chunk;
01010   vtk3DSColour_24 colour_24;
01011
01012   start_chunk (importer, &chunk);
01013
01014   switch (chunk.tag)
01015     {
01016     case 0x0010: parse_colour_f (importer, colour);
01017       break;
01018
01019     case 0x0011: parse_colour_24 (importer, &colour_24);
01020       colour->red   = colour_24.red/255.0;
01021       colour->green = colour_24.green/255.0;
01022       colour->blue  = colour_24.blue/255.0;
01023       break;
01024
01025     default: vtkGenericWarningMacro(<< "Error parsing colour");
01026     }
01027
01028   end_chunk (importer, &chunk);
01029 }

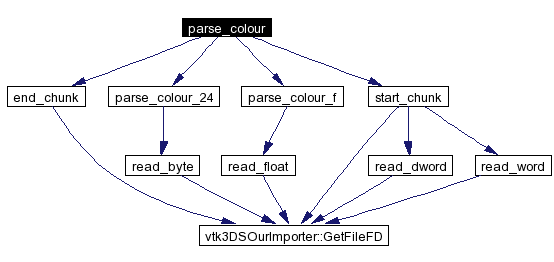

Here is the call graph for this function:

void parse_colour_24 (  vtk3DSOurImporter *  importer,
vtk3DSColour_24 *  colour
)  [static]


Definition at line 1040 of file vtk3DSOurImporter.cpp.

References read_byte().

Referenced by parse_colour().

01041 {
01042   colour->red   = read_byte(importer);
01043   colour->green = read_byte(importer);
01044   colour->blue  = read_byte(importer);
01045 }

Here is the call graph for this function:

void parse_colour_f (  vtk3DSOurImporter *  importer,
vtk3DSColour *  colour
)  [static]


Definition at line 1032 of file vtk3DSOurImporter.cpp.

References read_float().

Referenced by parse_colour().

01033 {
01034   colour->red   = read_float(importer);
01035   colour->green = read_float(importer);
01036   colour->blue  = read_float(importer);
01037 }

Here is the call graph for this function:

void parse_dl_spotlight (  vtk3DSOurImporter *  importer  )  [static]


Definition at line 974 of file vtk3DSOurImporter.cpp.

References falloff, hotspot, read_float(), read_point(), and target.

Referenced by parse_n_direct_light().

00975 {
00976   read_point (importer, target);
00977
00978   hotspot = read_float(importer);
00979   falloff = read_float(importer);
00980 }

Here is the call graph for this function:

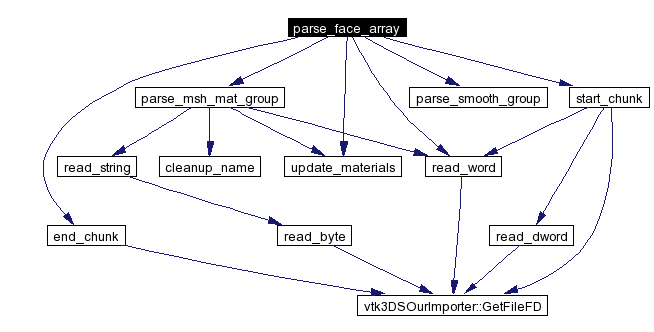

void parse_face_array (  vtk3DSOurImporter *  importer,
vtk3DSMesh *  mesh,
vtk3DSChunk *  mainchunk
)  [static]


Definition at line 805 of file vtk3DSOurImporter.cpp.

References end_chunk(), parse_msh_mat_group(), parse_smooth_group(), read_word(), start_chunk(), and update_materials().

Referenced by parse_n_tri_object().

00806 {
00807   vtk3DSChunk chunk;
00808   int i;
00809   mesh->faces = read_word(importer);
00810   mesh->face = (vtk3DSFace *) malloc (mesh->faces * sizeof(*(mesh->face)));
00811   mesh->mtl = (vtk3DSMaterial **) malloc (mesh->faces * sizeof(*(mesh->mtl)));
00812
00813   for (i = 0; i < mesh->faces; i++)
00814     {
00815     mesh->face[i].a = read_word(importer);
00816     mesh->face[i].b = read_word(importer);
00817     mesh->face[i].c = read_word(importer);
00818     //fprintf (stdout, "face %d: %d,%d,%d, %d \n", i, mesh->face[i].a, mesh->face[i].b, mesh->face[i].c, read_word(importer));
00819     (void)read_word(importer); //flags not implemented: bit 0 - CA visible, bit 1 - BC visible, bit 2 - AB visible
00820     mesh->mtl[i] = NULL;
00821     }
00822
00823   do
00824     {
00825     start_chunk (importer, &chunk);
00826     if (chunk.end <= mainchunk->end)
00827       {
00828       switch (chunk.tag)
00829         {
00830         case 0x4130: parse_msh_mat_group(importer, mesh);
00831           break;
00832         case 0x4150: parse_smooth_group(importer);
00833           break;
00834         }
00835       }
00836
00837     end_chunk (importer, &chunk);
00838     } while (chunk.end <= mainchunk->end);
00839
00840   for (i = 0; i < mesh->faces; i++)
00841     {
00842     if (mesh->mtl[i] == (vtk3DSMaterial *) NULL)
00843       {
00844       mesh->mtl[i] = update_materials (importer, "Default", 0);
00845       }
00846     }
00847 }

Here is the call graph for this function:

float parse_float_percentage (  vtk3DSOurImporter *  importer  )  [static]


Definition at line 1080 of file vtk3DSOurImporter.cpp.

References read_float().

Referenced by parse_percentage().

01081 {
01082   float percent = read_float(importer);
01083
01084   return percent;
01085 }

Here is the call graph for this function:

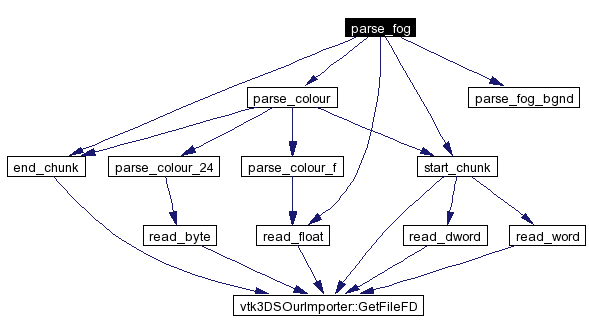

void parse_fog (  vtk3DSOurImporter *  importer,
vtk3DSChunk *  mainchunk
)  [static]


Definition at line 600 of file vtk3DSOurImporter.cpp.

References end_chunk(), fog_colour, parse_colour(), parse_fog_bgnd(), read_float(), and start_chunk().

Referenced by parse_mdata().

00601 {
00602   vtk3DSChunk chunk;
00603
00604   (void)read_float(importer);
00605   (void)read_float(importer);
00606   (void) read_float(importer);
00607   (void)read_float(importer);
00608
00609   parse_colour (importer, &fog_colour);
00610
00611   do
00612     {
00613     start_chunk (importer, &chunk);
00614
00615     if (chunk.end <= mainchunk->end)
00616       {
00617       switch (chunk.tag)
00618         {
00619         case 0x2210: parse_fog_bgnd(importer);
00620           break;
00621         }
00622       }
00623
00624     end_chunk (importer, &chunk);
00625     } while (chunk.end <= mainchunk->end);
00626 }

Here is the call graph for this function:

void parse_fog_bgnd (  vtk3DSOurImporter *  vtkNotUsed(importer)  )  [static]


Definition at line 629 of file vtk3DSOurImporter.cpp.

Referenced by parse_fog(), and parse_mdata().

00630 {
00631 }

void parse_fog_bgnd (  vtk3DSOurImporter *  importer  )  [static]


short parse_int_percentage (  vtk3DSOurImporter *  importer  )  [static]


Definition at line 1072 of file vtk3DSOurImporter.cpp.

References read_word().

Referenced by parse_percentage().

01073 {
01074   word percent = read_word(importer);
01075
01076   return percent;
01077 }

Here is the call graph for this function:

char * parse_mapname (  vtk3DSOurImporter *  importer,
vtk3DSChunk *  mainchunk
)  [static]


Definition at line 697 of file vtk3DSOurImporter.cpp.

References end_chunk(), read_string(), and start_chunk().

Referenced by parse_mat_entry().

00698 {
00699   static char name[80] = "";
00700   vtk3DSChunk chunk;
00701
00702   do
00703     {
00704     start_chunk (importer, &chunk);
00705
00706     if (chunk.end <= mainchunk->end)
00707       {
00708       switch (chunk.tag)
00709         {
00710         case 0xA300: strcpy (name, read_string(importer));
00711           break;
00712         }
00713       }
00714
00715     end_chunk (importer, &chunk);
00716     } while (chunk.end <= mainchunk->end);
00717
00718     return name;
00719 }

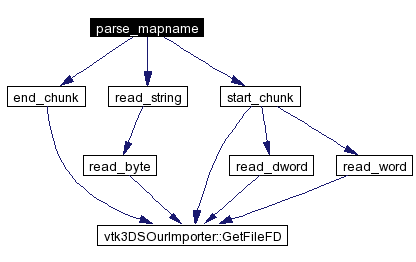

Here is the call graph for this function:

void parse_mat_entry (  vtk3DSOurImporter *  importer,
vtk3DSChunk *  mainchunk
)  [static]


Definition at line 634 of file vtk3DSOurImporter.cpp.

References cleanup_name(), create_mprop(), end_chunk(), vtk3DSOurImporter::MatPropList, parse_colour(), parse_mapname(), parse_percentage(), read_string(), and start_chunk().

Referenced by parse_mdata().

00635 {
00636   vtk3DSChunk chunk;
00637   vtk3DSMatProp *mprop;
00638
00639   mprop = create_mprop();
00640
00641   do
00642     {
00643     start_chunk (importer, &chunk);
00644     if (chunk.end <= mainchunk->end)
00645       {
00646       switch (chunk.tag)
00647         {
00648         case 0xA000: strcpy (mprop->name, read_string(importer));
00649           cleanup_name (mprop->name);
00650           break;
00651
00652         case 0xA010: parse_colour (importer, &mprop->ambient);
00653           break;
00654
00655         case 0xA020: parse_colour (importer, &mprop->diffuse);
00656           break;
00657
00658         case 0xA030: parse_colour (importer, &mprop->specular);
00659           break;
00660
00661         case 0xA040: mprop->shininess = 100.0*parse_percentage(importer);
00662           break;
00663
00664         case 0xA050: mprop->transparency = parse_percentage(importer);
00665           break;
00666
00667         case 0xA080: mprop->self_illum = 1;
00668           break;
00669
00670         case 0xA220: mprop->reflection = parse_percentage(importer);
00671           (void)parse_mapname (importer, &chunk);
00672           break;
00673
00674         case 0xA310: if (mprop->reflection == 0.0)
00675           {
00676           mprop->reflection = 1.0;
00677           }
00678         break;
00679
00680         case 0xA200: mprop->tex_strength = parse_percentage(importer);
00681           strcpy (mprop->tex_map, parse_mapname (importer, &chunk));
00682           break;
00683
00684         case 0xA230: mprop->bump_strength = parse_percentage(importer);
00685           strcpy (mprop->bump_map, parse_mapname (importer, &chunk));
00686           break;
00687         }
00688       }
00689
00690     end_chunk (importer, &chunk);
00691     } while (chunk.end <= mainchunk->end);
00692
00693     VTK_LIST_INSERT (importer->MatPropList, mprop);
00694 }

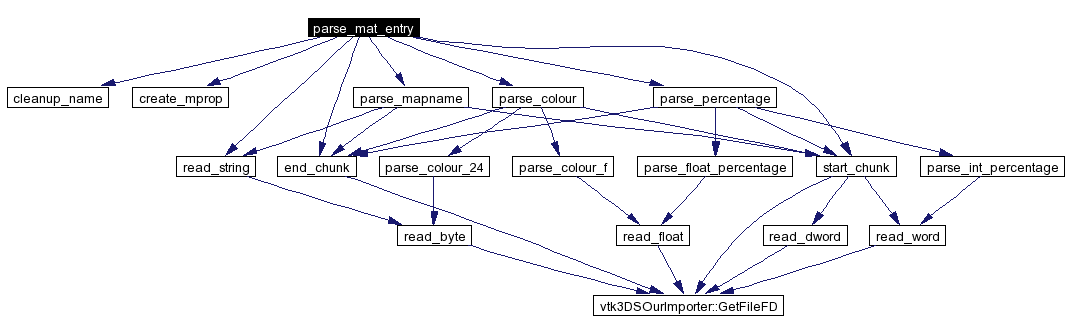

Here is the call graph for this function:

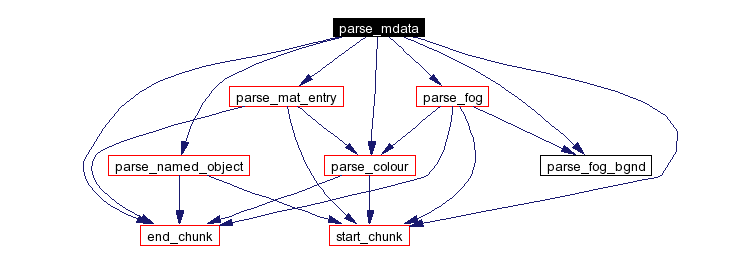

void parse_mdata (  vtk3DSOurImporter *  importer,
vtk3DSChunk *  mainchunk
)  [static]


Definition at line 567 of file vtk3DSOurImporter.cpp.

References end_chunk(), global_amb, parse_colour(), parse_fog(), parse_fog_bgnd(), parse_mat_entry(), parse_named_object(), and start_chunk().

Referenced by parse_3ds().

00568 {
00569   vtk3DSChunk chunk;
00570   vtk3DSColour bgnd_colour;
00571
00572   do
00573     {
00574     start_chunk (importer, &chunk);
00575
00576     if (chunk.end <= mainchunk->end)
00577       {
00578       switch (chunk.tag)
00579         {
00580         case 0x2100: parse_colour (importer, &global_amb);
00581           break;
00582         case 0x1200: parse_colour (importer, &bgnd_colour);
00583           break;
00584         case 0x2200: parse_fog (importer, &chunk);
00585           break;
00586         case 0x2210: parse_fog_bgnd(importer);
00587           break;
00588         case 0xAFFF: parse_mat_entry (importer, &chunk);
00589           break;
00590         case 0x4000: parse_named_object (importer, &chunk);
00591           break;
00592         }
00593       }
00594
00595     end_chunk (importer, &chunk);
00596     } while (chunk.end <= mainchunk->end);
00597 }

Here is the call graph for this function:

void parse_mesh_matrix (  vtk3DSOurImporter *  vtkNotUsed(importer),
vtk3DSMesh *  vtkNotUsed(mesh)
)  [static]


Definition at line 875 of file vtk3DSOurImporter.cpp.

Referenced by parse_n_tri_object().

00876 {
00877   //  vtkGenericWarningMacro(<< "mesh matrix detected but not used\n");
00878 }

void parse_mesh_matrix (  vtk3DSOurImporter *  importer,
vtk3DSMesh *  mesh
)  [static]

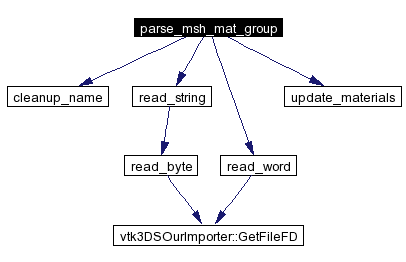

void parse_msh_mat_group (  vtk3DSOurImporter *  importer,
vtk3DSMesh *  mesh
)  [static]


Definition at line 850 of file vtk3DSOurImporter.cpp.

References cleanup_name(), read_string(), read_word(), and update_materials().

Referenced by parse_face_array().

00851 {
00852   vtk3DSMaterial *new_mtl;
00853   char mtlname[80];
00854   int  mtlcnt;
00855   int  i, face;
00856
00857   strcpy (mtlname, read_string(importer));
00858   cleanup_name (mtlname);
00859
00860   new_mtl = update_materials (importer, mtlname, 0);
00861
00862   mtlcnt = read_word(importer);
00863
00864   for (i = 0; i < mtlcnt; i++)
00865     {
00866     face = read_word(importer);
00867     mesh->mtl[face] = new_mtl;
00868     }
00869 }

Here is the call graph for this function:

void parse_n_camera (  vtk3DSOurImporter *  importer  )  [static]


Definition at line 983 of file vtk3DSOurImporter.cpp.

References vtk3DSOurImporter::CameraList, obj_name, pos, read_float(), read_point(), and target.

Referenced by parse_named_object().

00984 {
00985   float  bank;
00986   float  lens;
00987   vtk3DSCamera *c = (vtk3DSCamera *) malloc (sizeof (vtk3DSCamera));
00988
00989   read_point (importer, pos);
00990   read_point (importer, target);
00991   bank = read_float(importer);
00992   lens = read_float(importer);
00993
00994   strcpy (c->name, obj_name);
00995   c->pos[0] = pos[0];
00996   c->pos[1] = pos[1];
00997   c->pos[2] = pos[2];
00998   c->target[0] = target[0];
00999   c->target[1] = target[1];
01000   c->target[2] = target[2];
01001   c->lens = lens;
01002   c->bank = bank;
01003
01004   VTK_LIST_INSERT (importer->CameraList, c);
01005 }

Here is the call graph for this function:

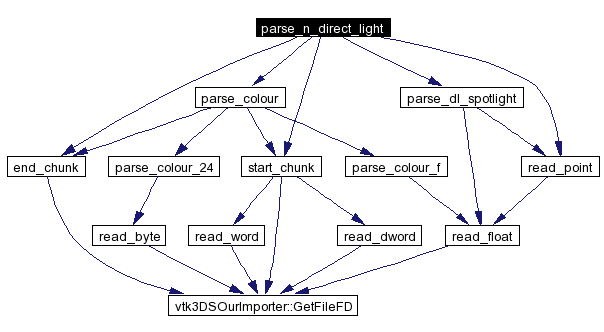

void parse_n_direct_light (  vtk3DSOurImporter *  importer,
vtk3DSChunk *  mainchunk
)  [static]


Definition at line 881 of file vtk3DSOurImporter.cpp.

References col, end_chunk(), falloff, hotspot, obj_name, vtk3DSOurImporter::OmniList, parse_colour(), parse_dl_spotlight(), pos, read_point(), vtk3DSOurImporter::SpotLightList, start_chunk(), and target.

Referenced by parse_named_object().

00882 {
00883   vtk3DSChunk chunk;
00884   vtk3DSSpotLight *s;
00885   vtk3DSOmniLight *o;
00886   int spot_flag = 0;
00887
00888   read_point (importer, pos);
00889   parse_colour (importer, &col);
00890
00891   do
00892     {
00893     start_chunk (importer, &chunk);
00894
00895     if (chunk.end <= mainchunk->end)
00896       {
00897       switch (chunk.tag)
00898         {
00899         case 0x4620: break;
00900         case 0x4610: parse_dl_spotlight(importer);
00901           spot_flag = 1;
00902           break;
00903         }
00904       }
00905
00906     end_chunk (importer, &chunk);
00907     } while (chunk.end <= mainchunk->end);
00908
00909   if (!spot_flag)
00910     {
00911     o = (vtk3DSOmniLight *) VTK_LIST_FIND (importer->OmniList, obj_name);
00912
00913     if (o != NULL)
00914       {
00915       pos[0] = o->pos[0];
00916       pos[1] = o->pos[1];
00917       pos[2] = o->pos[2];
00918       col    = o->col;
00919       }
00920     else
00921       {
00922       o = (vtk3DSOmniLight *) malloc (sizeof (*o));
00923       o->pos[0] = pos[0];
00924       o->pos[1] = pos[1];
00925       o->pos[2] = pos[2];
00926       o->col = col   ;
00927       strcpy (o->name, obj_name);
00928       VTK_LIST_INSERT (importer->OmniList, o);
00929       }
00930     }
00931   else
00932     {
00933     s = (vtk3DSSpotLight *) VTK_LIST_FIND (importer->SpotLightList, obj_name);
00934
00935     if (s != NULL)
00936       {
00937       pos[0]    = s->pos[0];
00938       pos[1]    = s->pos[1];
00939       pos[2]    = s->pos[2];
00940       target[0] = s->target[0];
00941       target[1] = s->target[1];
00942       target[2] = s->target[2];
00943       col       = s->col;
00944       hotspot   = s->hotspot;
00945       falloff   = s->falloff;
00946       }
00947     else
00948       {
00949       if (falloff <= 0.0)
00950         {
00951         falloff = 180.0;
00952         }
00953       if (hotspot <= 0.0)
00954         {
00955         hotspot = 0.7*falloff;
00956         }
00957       s = (vtk3DSSpotLight *) malloc (sizeof (*s));
00958       s->pos[0] = pos[0];
00959       s->pos[1] = pos[1];
00960       s->pos[2] = pos[2];
00961       s->target[0] = target[0];
00962       s->target[1] = target[1];
00963       s->target[2] = target[2];
00964       s->col = col   ;
00965       s->hotspot = hotspot;
00966       s->falloff = falloff;
00967       strcpy (s->name, obj_name);
00968       VTK_LIST_INSERT (importer->SpotLightList, s);
00969       }
00970     }
00971 }

Here is the call graph for this function:

void parse_n_tri_object (  vtk3DSOurImporter *  importer,
vtk3DSChunk *  mainchunk
)  [static]


Definition at line 763 of file vtk3DSOurImporter.cpp.

References create_mesh(), end_chunk(), vtk3DSOurImporter::MeshList, obj_name, parse_face_array(), parse_mesh_matrix(), parse_point_array(), and start_chunk().

Referenced by parse_named_object().

00764 {
00765   vtk3DSMesh *mesh;
00766   vtk3DSChunk chunk;
00767
00768   mesh = create_mesh (obj_name, 0, 0);
00769
00770   do
00771     {
00772     start_chunk (importer, &chunk);
00773
00774     if (chunk.end <= mainchunk->end)
00775       {
00776       switch (chunk.tag)
00777         {
00778         case 0x4110: parse_point_array(importer, mesh);
00779           break;
00780         case 0x4120: parse_face_array (importer, mesh, &chunk);
00781           break;
00782         case 0x4160: parse_mesh_matrix(importer, mesh);
00783           break;
00784         }
00785       }
00786
00787     end_chunk (importer, &chunk);
00788     } while (chunk.end <= mainchunk->end);
00789
00790   VTK_LIST_INSERT (importer->MeshList, mesh);
00791 }

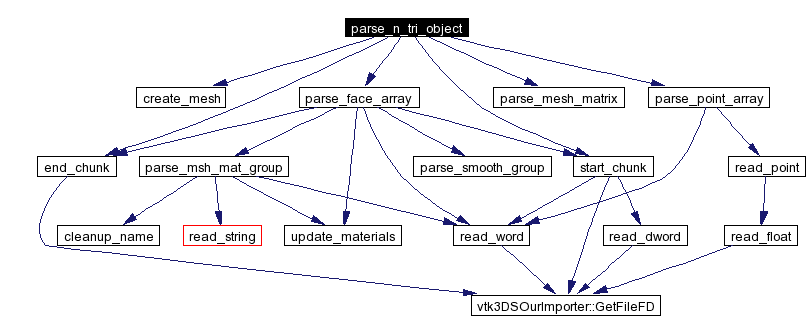

Here is the call graph for this function:

void parse_named_object (  vtk3DSOurImporter *  importer,
vtk3DSChunk *  mainchunk
)  [static]


Definition at line 722 of file vtk3DSOurImporter.cpp.

References cleanup_name(), end_chunk(), obj_name, parse_n_camera(), parse_n_direct_light(), parse_n_tri_object(), read_string(), and start_chunk().

Referenced by parse_mdata().

00723 {
00724   vtk3DSMesh *mesh;
00725   vtk3DSChunk chunk;
00726
00727   strcpy (obj_name, read_string(importer));
00728   cleanup_name (obj_name);
00729
00730   mesh = NULL;
00731
00732   do
00733     {
00734     start_chunk (importer, &chunk);
00735     if (chunk.end <= mainchunk->end)
00736       {
00737       switch (chunk.tag)
00738         {
00739         case 0x4100: parse_n_tri_object (importer, &chunk);
00740           break;
00741         case 0x4600: parse_n_direct_light (importer, &chunk);
00742           break;
00743         case 0x4700: parse_n_camera(importer);
00744           break;
00745         case 0x4010: if (mesh != NULL)
00746           {
00747           mesh->hidden = 1;
00748           }
00749         break;
00750         case 0x4012: if (mesh != NULL)
00751           {
00752           mesh->shadow = 0;
00753           }
00754         break;
00755         }
00756       }
00757
00758     end_chunk (importer, &chunk);
00759     } while (chunk.end <= mainchunk->end);
00760
00761 }

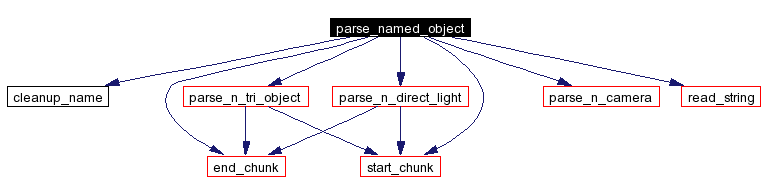

Here is the call graph for this function:

float parse_percentage (  vtk3DSOurImporter *  importer  )  [static]


Definition at line 1048 of file vtk3DSOurImporter.cpp.

References end_chunk(), parse_float_percentage(), parse_int_percentage(), and start_chunk().

Referenced by parse_mat_entry().

01049 {
01050   vtk3DSChunk chunk;
01051   float percent = 0.0;
01052
01053   start_chunk (importer, &chunk);
01054
01055   switch (chunk.tag)
01056     {
01057     case 0x0030: percent = parse_int_percentage(importer)/100.0;
01058       break;
01059
01060     case 0x0031: percent = parse_float_percentage(importer);
01061       break;
01062
01063     default:     vtkGenericWarningMacro( << "Error parsing percentage\n");
01064     }
01065
01066   end_chunk (importer, &chunk);
01067
01068   return percent;
01069 }

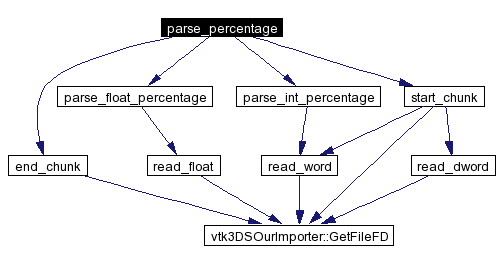

Here is the call graph for this function:

void parse_point_array (  vtk3DSOurImporter *  importer,
vtk3DSMesh *  mesh
)  [static]


Definition at line 794 of file vtk3DSOurImporter.cpp.

References read_point(), and read_word().

Referenced by parse_n_tri_object().

00795 {
00796   int i;
00797   mesh->vertices = read_word(importer);
00798   mesh->vertex = (vtk3DSVector *) malloc (mesh->vertices * sizeof(*(mesh->vertex)));
00799   for (i = 0; i < mesh->vertices; i++)
00800     {
00801     read_point (importer, mesh->vertex[i]);
00802     }
00803 }

Here is the call graph for this function:

void parse_smooth_group (  vtk3DSOurImporter *  vtkNotUsed(importer)  )  [static]


Definition at line 871 of file vtk3DSOurImporter.cpp.

Referenced by parse_face_array().

00872 {
00873 }

void parse_smooth_group (  vtk3DSOurImporter *  importer  )  [static]


byte read_byte (  vtk3DSOurImporter *  importer  )  [static]


Definition at line 1107 of file vtk3DSOurImporter.cpp.

References vtk3DSOurImporter::GetFileFD().

Referenced by parse_colour_24(), and read_string().

01108 {
01109   byte data;
01110
01111   data = fgetc (importer->GetFileFD());
01112
01113   return data;
01114 }

Here is the call graph for this function:

dword read_dword (  vtk3DSOurImporter *  importer  )  [static]


Definition at line 1128 of file vtk3DSOurImporter.cpp.

References vtk3DSOurImporter::GetFileFD().

Referenced by start_chunk().

01129 {
01130   dword data;
01131
01132   if (fread (&data, 4, 1, importer->GetFileFD()) != 1)
01133     {
01134 //    vtkGenericWarningMacro(<<"Pre-mature end of file in read_dword\n");
01135     data = 0;
01136     }
01137
01138   vtkByteSwap::Swap4LE ((char *) &data);
01139   return data;
01140 }

Here is the call graph for this function:

float read_float (  vtk3DSOurImporter *  importer  )  [static]


Definition at line 1143 of file vtk3DSOurImporter.cpp.

References vtk3DSOurImporter::GetFileFD().

Referenced by parse_colour_f(), parse_dl_spotlight(), parse_float_percentage(), parse_fog(), parse_n_camera(), and read_point().

01144 {
01145   float data;
01146
01147   fread (&data, 4, 1, importer->GetFileFD());
01148   vtkByteSwap::Swap4LE ((char *) &data);
01149 /*    TIFFSwabLong (&data);*/
01150
01151     return data;
01152 }

Here is the call graph for this function:

void read_point (  vtk3DSOurImporter *  importer,
vtk3DSVector  v
)  [static]


Definition at line 1155 of file vtk3DSOurImporter.cpp.

References read_float().

Referenced by parse_dl_spotlight(), parse_n_camera(), parse_n_direct_light(), and parse_point_array().

01156 {
01157   v[0] = read_float(importer);
01158   v[1] = read_float(importer);
01159   v[2] = read_float(importer);
01160 }

Here is the call graph for this function:

char * read_string (  vtk3DSOurImporter *  importer  )  [static]


Definition at line 1163 of file vtk3DSOurImporter.cpp.

References read_byte().

Referenced by parse_mapname(), parse_mat_entry(), parse_msh_mat_group(), and parse_named_object().

01164 {
01165   static char string[80];
01166   int i;
01167
01168   for (i = 0; i < 80; i++)
01169     {
01170     string[i] = read_byte(importer);
01171
01172     if (string[i] == '\0')
01173       {
01174       break;
01175       }
01176     }
01177
01178     return string;
01179 }

Here is the call graph for this function:

word read_word (  vtk3DSOurImporter *  importer  )  [static]


Definition at line 1117 of file vtk3DSOurImporter.cpp.

References vtk3DSOurImporter::GetFileFD().

Referenced by parse_face_array(), parse_int_percentage(), parse_msh_mat_group(), parse_point_array(), and start_chunk().

01118 {
01119   word data;
01120
01121   fread (&data, 2, 1, importer->GetFileFD());
01122   vtkByteSwap::Swap2LE ((short *) &data);
01123 /*    swab ((char *) &data, (char *) &sdata, 2);*/
01124
01125   return data;
01126 }

Here is the call graph for this function:

void start_chunk (  vtk3DSOurImporter *  importer,
vtk3DSChunk *  chunk
)  [static]


Definition at line 1088 of file vtk3DSOurImporter.cpp.

References vtk3DSOurImporter::GetFileFD(), read_dword(), and read_word().

Referenced by parse_3ds(), parse_3ds_file(), parse_colour(), parse_face_array(), parse_fog(), parse_mapname(), parse_mat_entry(), parse_mdata(), parse_n_direct_light(), parse_n_tri_object(), parse_named_object(), and parse_percentage().

01089 {
01090   chunk->start  = ftell(importer->GetFileFD());
01091   chunk->tag    = read_word(importer);
01092   chunk->length = read_dword(importer);
01093   if (chunk->length == 0)
01094     {
01095     chunk->length = 1;
01096     }
01097   chunk->end    = chunk->start + chunk->length;
01098 }

Here is the call graph for this function:

vtk3DSMaterial * update_materials (  vtk3DSOurImporter *  importer,
const char *  new_material,
int  ext
)  [static]


Definition at line 438 of file vtk3DSOurImporter.cpp.

References vtk3DSOurImporter::MaterialList.

Referenced by parse_face_array(), and parse_msh_mat_group().

00439 {
00440   vtk3DSMaterial *p;
00441
00442   p = (vtk3DSMaterial *) VTK_LIST_FIND (importer->MaterialList, new_material);
00443
00444   if (p == NULL)
00445     {
00446     p = (vtk3DSMaterial *) malloc (sizeof (*p));
00447     strcpy (p->name, new_material);
00448     p->external = ext;
00449     VTK_LIST_INSERT (importer->MaterialList, p);
00450     }
00451   return p;
00452 }

Variable Documentation

vtk3DSColour Black = {0.0, 0.0, 0.0} [static]


Definition at line 69 of file vtk3DSOurImporter.cpp.

Referenced by create_mprop().

vtk3DSColour col = {0.0, 0.0, 0.0} [static]


Definition at line 72 of file vtk3DSOurImporter.cpp.

Referenced by parse_n_direct_light().

vtk3DSMatProp DefaultMaterial [static]


Initial value:

  { "Default", NULL,
    {1.0, 1.0, 1.0}, {1.0, 1.0, 1.0}, {1.0, 1.0, 1.0},
    70.0,
    0.0,
    0.0,
    0,
    "",
    0.0,
    "",
    0.0,
    NULL}

Definition at line 79 of file vtk3DSOurImporter.cpp.

Referenced by vtk3DSOurImporter::Read3DS().

float falloff = -1 [static]


Definition at line 77 of file vtk3DSOurImporter.cpp.

Referenced by parse_dl_spotlight(), and parse_n_direct_light().

vtk3DSColour fog_colour = {0.0, 0.0, 0.0} [static]


Definition at line 71 of file vtk3DSOurImporter.cpp.

Referenced by parse_fog().

vtk3DSColour global_amb = {0.1, 0.1, 0.1} [static]


Definition at line 73 of file vtk3DSOurImporter.cpp.

Referenced by parse_mdata().

float hotspot = -1 [static]


Definition at line 76 of file vtk3DSOurImporter.cpp.

Referenced by parse_dl_spotlight(), and parse_n_direct_light().

char obj_name[80] = "" [static]


Definition at line 70 of file vtk3DSOurImporter.cpp.

Referenced by parse_n_camera(), parse_n_direct_light(), parse_n_tri_object(), and parse_named_object().

vtk3DSVector pos = {0.0, 0.0, 0.0} [static]


Definition at line 74 of file vtk3DSOurImporter.cpp.

Referenced by parse_n_camera(), and parse_n_direct_light().

vtk3DSVector target = {0.0, 0.0, 0.0} [static]


Definition at line 75 of file vtk3DSOurImporter.cpp.

Referenced by parse_dl_spotlight(), parse_n_camera(), and parse_n_direct_light().

Generated on Sun Jun 22 12:13:15 2003 for Catmull Clark by doxygen 1.3.2
