Illustrative Rendering of Seismic Data

Daniel Patel, Christopher Giertsen, John Thurmond, Meister Eduard Gröller
Illustrative Rendering of Seismic Data
In Proceeding of Vision Modeling and Visualization 2007, pages 13-22. November 2007.
[ ]
Content:

Information

Abstract

In our work we present techniques for illustrative rendering of interpreted seismic volume data by adopting elements from geology book illustrations. We also introduce combined visualization techniques of interpreted and uninterpreted data for validation, comparison and interdisciplinary communication reasons. We introduce the concept of smooth transitions between these two semantical levels. To achieve this we present transfer functions that map seismic volume attributes to 2D textures that flow according to a deformation volume describing the buckling and discontinuities of the layers of the seismic data.

Additional Files and Images

Additional images and videos:
movie clip movie clip: movie clip of application in use
More images and videos:

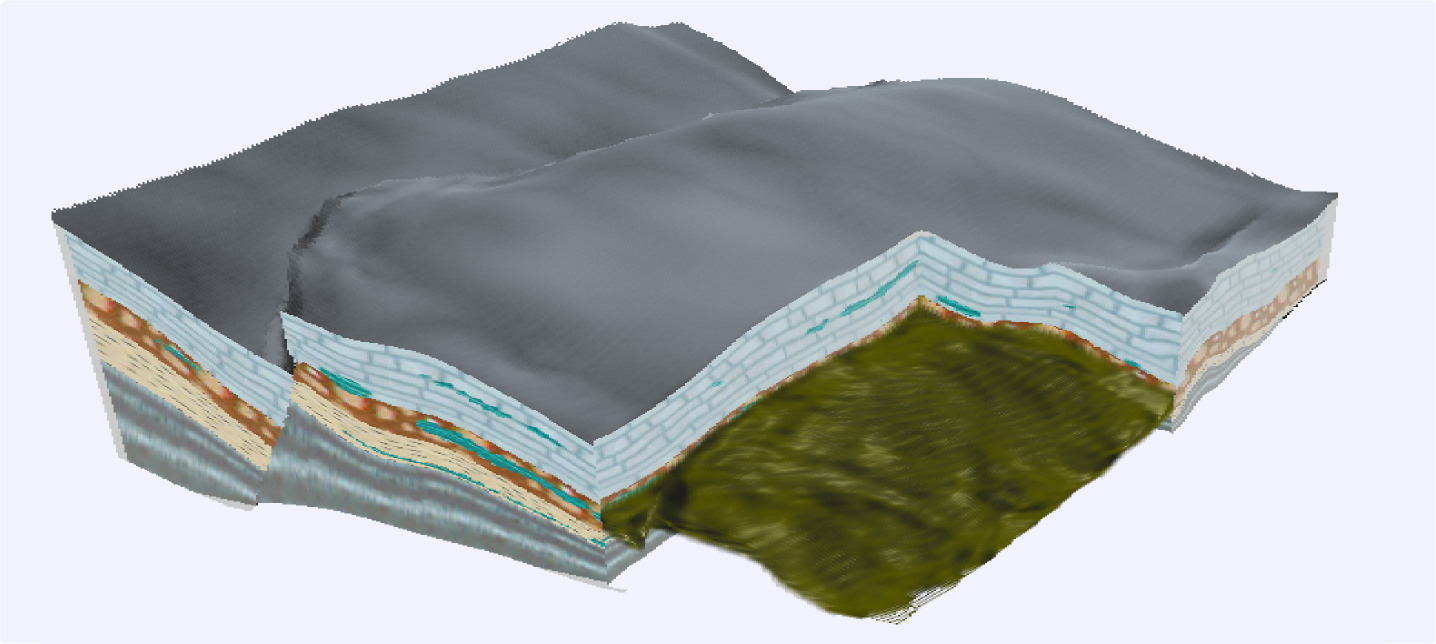

Illustrative rendering
Illustrative rendering

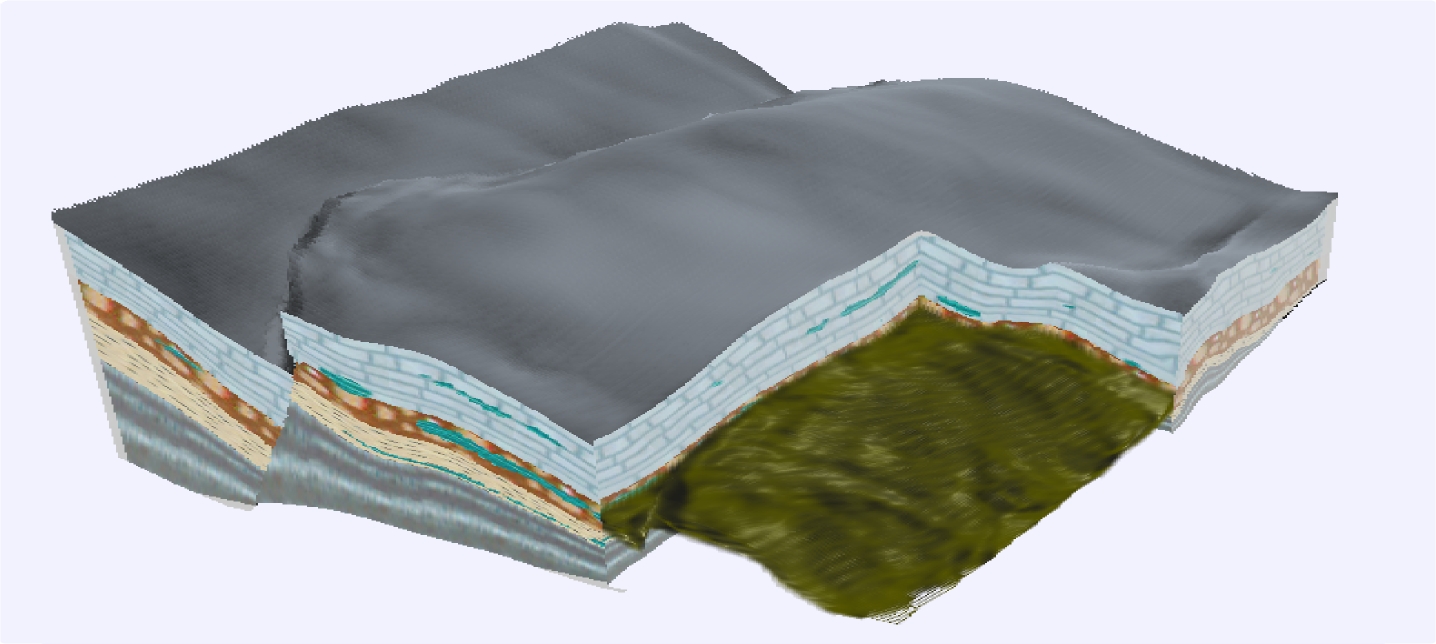

Ilustrative rendering if seismic data
